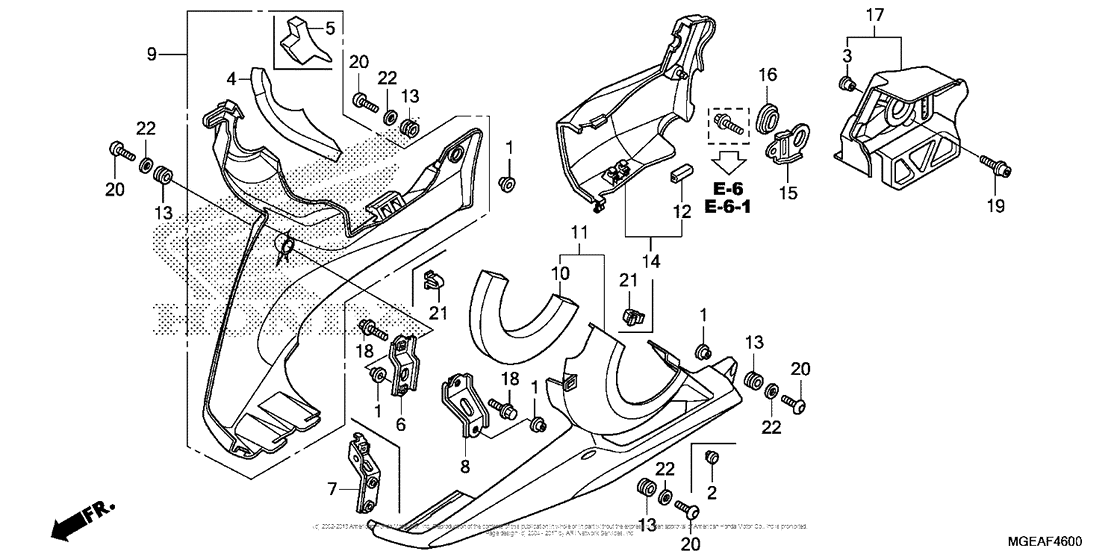

Lower Cowl Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50609-MCW-D00 Collar |
50609-MCW-D00 |
from US $2.59 |
||
|
3
|
3
61105-KM7-910 Collar, fr. fender |
61105-KM7-910 |
from US $1.57 |
||
|
4
|
4
64511-MGE-300 Mat, r, cowl (lower) |
64511-MGE-300 |
from US $13.26 |
||
|
6
|
6
64545-MGE-000 Stay, r, cowl |
64545-MGE-000 |
US $8.59 |
||
|
8
|
8
64546-MGE-000 Stay, l, cowl |
64546-MGE-000 |
from US $6.67 |
||
|
9
|
9
64550-MGE-000 Cowl set, r, (lower) |
64550-MGE-000 |
from US $117.20 |
||
|
10
|
10
64611-MGE-300 Mat, l, cowl (lower) |
64611-MGE-300 |
from US $13.10 |
||
|
11
|
11
64650-MGE-000 Cowl set, l, (lower) |
64650-MGE-000 |
from US $117.20 |
||
|
12
|
12
77212-MFJ-D00 Protector, rubber |
77212-MFJ-D00 |
from US $1.19 |
||
|
13
|
13
80123-MER-D00 Rubber, rr |
80123-MER-D00 |
from US $2 |
||
|
14
|
14
83510-MGE-000 Guard, Rh |
83510-MGE-000 |
from US $26.37 |
||
|
15
|
15
83515-MGE-000 Stay, r |
83515-MGE-000 |
from US $6.35 |
||
|
16
|
16
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
17
|
17
83610-MGE-000 Guard, Lh |
83610-MGE-000 |
from US $19.16 |
||
|
18
|
18
90005-ZM3-000 Bolt, flange, 5x18 |
90005-ZM3-000 |
from US $0.81 |
||
|
19
|
19
90010-MJ6-000 Bolt (6x16) |
90010-MJ6-000 |
from US $2.22 |
||
|
20
|
20
90108-MFL-D20 Screw, pan (5x15) |
90108-MFL-D20 |
from US $2.29 |
||
|
22
|
22
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
