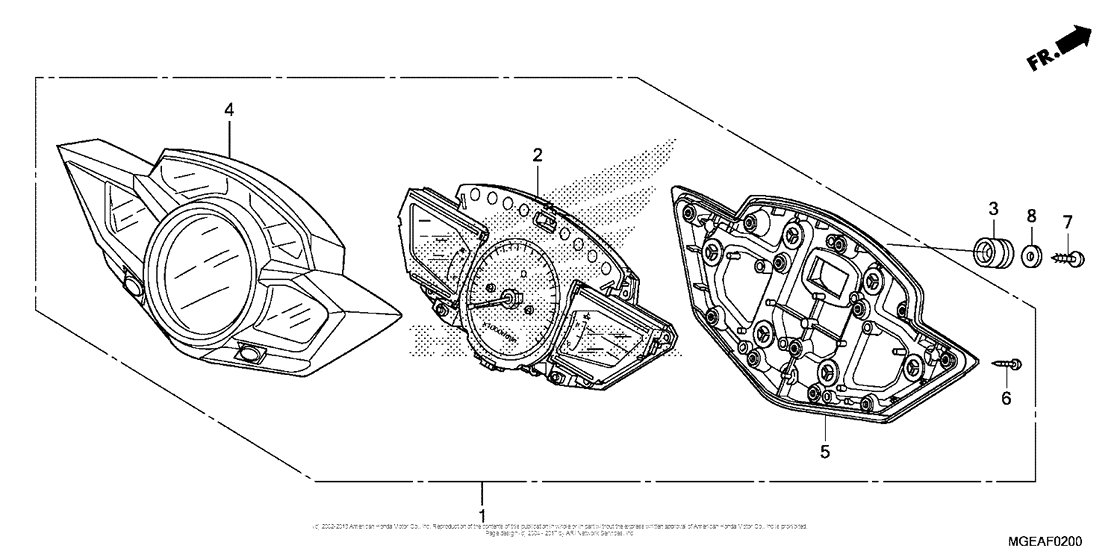

Meter Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37100-MGE-307 Meter, combination |
37100-MGE-307 |
from US $1,006.40 |
||
|
2
|
2
37110-MGE-C31 Meter |
37110-MGE-C31 |
from US $1,201.04 |
||
|
3
|
3
37215-MA6-008 Rubber |
37215-MA6-008 |
from US $1.73 |
||
|
4
|
4
37610-MGE-305 Case assy. (upper) |
37610-MGE-305 |
from US $96.56 |
||
|
5
|
5
37620-MGE-641 Case assy, (lower) |
37620-MGE-641 |
from US $85.90 |
||
|
6
|
6
93903-22420 ScrewTAPPING, 3X16 |
93903-22420 |
from US $0.37 |
||
|
7
|
7
93913-25380 ScrewTAPPING, 5X14(PO) |
93913-25380 |
from US $0.37 |
||
|
8
|
8
94103-05700 WasherPLAIN, 5MM |
94103-05700 |
from US $0.37 |
