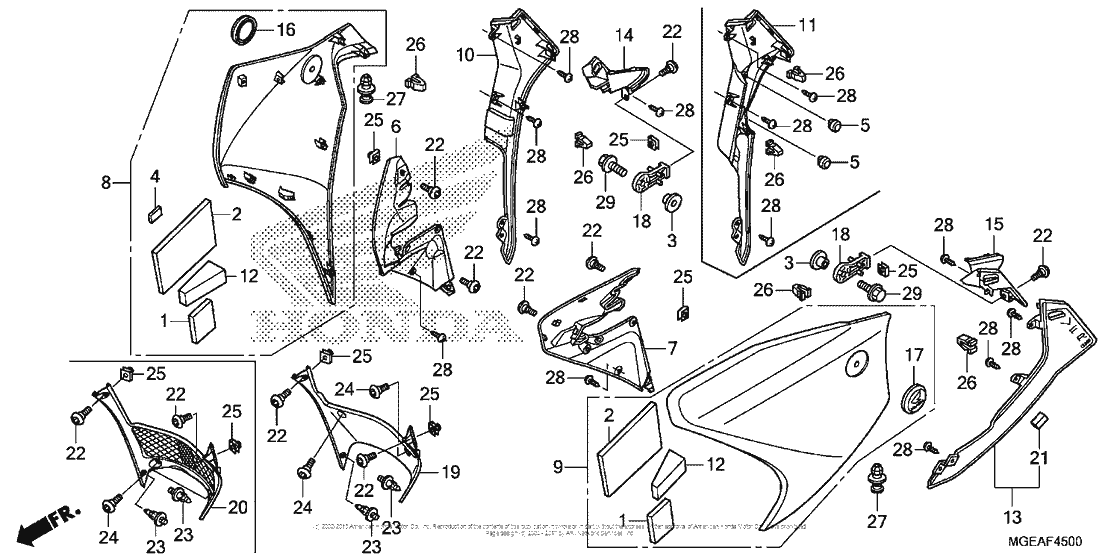

Middle Cowl Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17269-MCZ-300 Mat, side cover |
17269-MCZ-300 |
from US $6.51 |
||
|
2
|
2
17542-MCW-D00 Mat b, fuel tank |
17542-MCW-D00 |
from US $13.32 |
||
|
3
|
3
18422-MR1-000 Collar (8mm) |
18422-MR1-000 |
from US $2.89 |
||
|
4
|
4
50383-GB6-300 Rubber, battery |
50383-GB6-300 |
from US $1.86 |
||
|
6
|
6
64180-MGE-000 Panel, r, fr, cowl |
64180-MGE-000 |
from US $20.40 |
||
|
7
|
7
64190-MGE-000 Panel, l, fr, cowl |
64190-MGE-000 |
from US $17.95 |
||
|
8
|
8
64310-MGE-000ZD Cowl, r. *nh463m* |
64310-MGE-000ZD |
from US $414.80 |
||
|
9
|
9
64320-MGE-000ZD Cowl, l. *nh463m* |
64320-MGE-000ZD |
from US $463.23 |
||
|
10
|
10
64410-MGE-000ZA Cowl, r, *nha30m* |
64410-MGE-000ZA |
from US $123.08 |
||
|
12
|
12
64413-MGE-300 Mat a, middle cowl |
64413-MGE-300 |
from US $5.87 |
||
|
13
|
13
64420-MGE-000ZA Cowl, l, *nha30m* |
64420-MGE-000ZA |
from US $135.32 |
||
|
14
|
14
64430-MGE-000 Cowl, r, layer |
64430-MGE-000 |
from US $15.23 |
||
|
15
|
15
64440-MGE-000 Cowl, l, layer |
64440-MGE-000 |
from US $18.53 |
||
|
16
|
16
64503-MFL-000 Badge, r. product |
64503-MFL-000 |
from US $46.87 |
||
|
17
|
17
64508-MFL-000 Badge, l. product |
64508-MFL-000 |
from US $46.87 |
||
|
18
|
18
64541-MGE-000 Stay, layer cowl |
64541-MGE-000 |
from US $5.33 |
||
|
19
|
19
64900-MGE-000 Cowl (lower) (inner) |
64900-MGE-000 |
from US $26.38 |
||
|
21
|
21
77103-MFL-300 Cushion, single seat |
77103-MFL-300 |
from US $1.92 |
||
|
22
|
22
90114-MGE-000 Screw (5x11) |
90114-MGE-000 |
from US $2.16 |
||
|
23
|
23
90116-SP0-003 ClipBUMPER SEAL |
90116-SP0-003 |
from US $2.02 |
||
|
24
|
24
90117-MFL-D20 Screw, pan (6x14) |
90117-MFL-D20 |
from US $2 |
||
|
25
|
25
90312-MT3-000 Nut, clip (5mm) |
90312-MT3-000 |
from US $2.66 |
||
|
26
|
26
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $2.70 |
||
|
27
|
27
91549-MW0-790ZA Clip *nh1* |
91549-MW0-790ZA |
from US $1.57 |
||
|
28
|
28
93903-24280 ScrewTAPPING, 4X10 |
93903-24280 |
from US $0.37 |
||
|
29
|
29
96300-0802000 Bolt, flange (8x20) |
96300-0802000 |
from US $0.74 |
