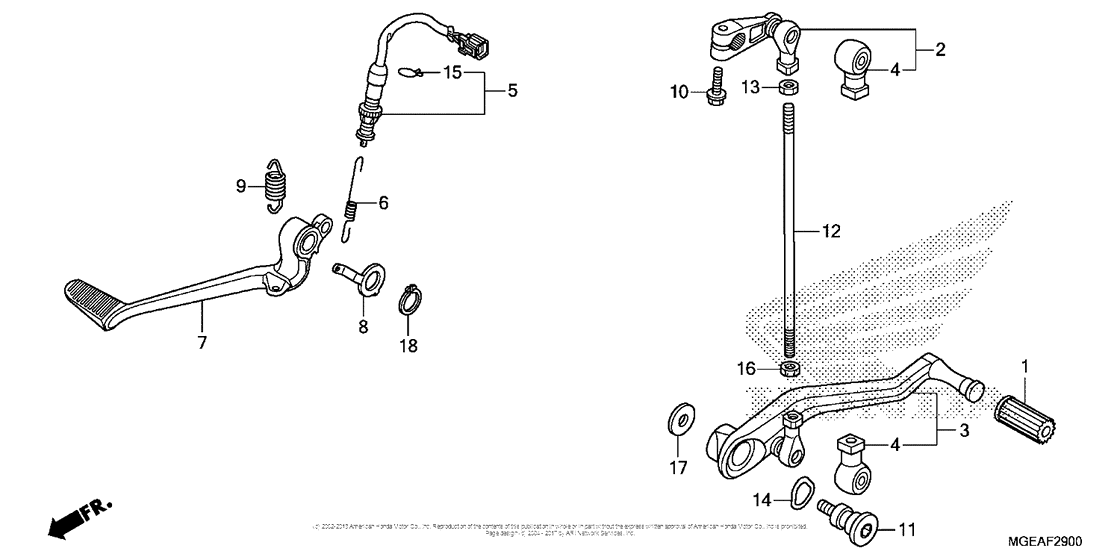

Pedal Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24705-MR7-000 Rubber |
24705-MR7-000 |
from US $2.50 |
||
|
2
|
2
24710-MGE-000 Arm, gearshift |
24710-MGE-000 |
from US $64.35 |
||
|
3
|
3
24720-MGE-305 Pedal (c00) |
24720-MGE-305 |
from US $120.90 |
||
| replacement | |||||
|
3
|
3
24720-MGE-000 PEDAL ASSY GEAR CH |
24720-MGE-000 |
from US $131.24 |
||
|
4
|
4
24724-MBW-D21 Cover, dust |
24724-MBW-D21 |
from US $6.36 |
||
|
5
|
5
35350-MGE-642 Switch, rr. stop |
35350-MGE-642 |
US $44.73 |
||
|
6
|
6
35357-KCT-690 Spring, stop switch |
35357-KCT-690 |
from US $3.63 |
||
|
7
|
7
46500-MGE-305 Pedal, rr, (c00) |
46500-MGE-305 |
from US $114.75 |
||
|
8
|
8
46502-MGE-000 Plate, brake pedal |
46502-MGE-000 |
from US $4.47 |
||
|
9
|
9
46514-KZ4-J00 Spring, brake pedal |
46514-KZ4-J00 |
US $7.28 |
||
|
10
|
10
90010-ML0-720 Bolt, flange (6x20) |
90010-ML0-720 |
from US $1.92 |
||
|
11
|
11
90113-MCF-000 Bolt, change pivot |
90113-MCF-000 |
from US $8.58 |
||
|
12
|
12
90165-MGE-010 Bolt, tie rod |
90165-MGE-010 |
from US $8.73 |
||
|
13
|
13
90302-MGE-000 Nut b, tie rod |
90302-MGE-000 |
from US $2.52 |
||
|
14
|
14
90505-MBW-000 Washer |
90505-MBW-000 |
from US $3.48 |
||
|
15
|
15
90651-MGE-641 Clip, switch cover |
90651-MGE-641 |
from US $1.70 |
||
|
16
|
16
94002-060-400-S Nut, hex, (6mm) |
94002-060-400-S |
from US $0.44 |
||
|
17
|
17
94103-08700 WasherPLAIN, 8MM |
94103-08700 |
from US $0.37 |
||
|
18
|
18
9451115000 Circlip, external, 15mm |
9451115000 |
from US $0.44 |
||
