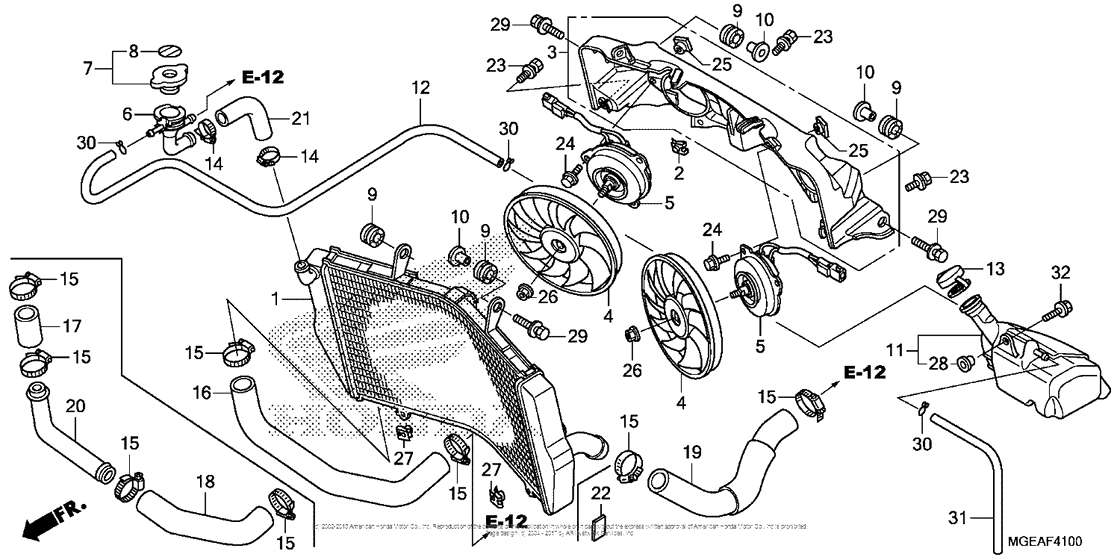

Radiator Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-MGE-305 Radiator (c00) |
19010-MGE-305 |
from US $1,043.33 |
||
|
2
|
2
19014-KEA-003 Nut, set |
19014-KEA-003 |
from US $2.25 |
||
|
3
|
3
19015-MGE-305 Shroud (c00) |
19015-MGE-305 |
US $89.54 |
||
|
4
|
4
19020-MFG-D01 Fan, cooling |
19020-MFG-D01 |
from US $45.97 |
||
|
5
|
5
19030-MGE-003 Motor assy,, fan |
19030-MGE-003 |
from US $218.96 |
||
|
6
|
6
19035-MFL-003 Neck, filler |
19035-MFL-003 |
from US $14.21 |
||
|
7
|
7
19037-GEE-710 Cap, radiator |
19037-GEE-710 |
from US $22.43 |
||
|
8
|
8
19046-PAA-A00 LabelRADIATOR CAP |
19046-PAA-A00 |
from US $1.55 |
||
|
9
|
9
19051-KA3-830 Rubber, radiator mounting |
19051-KA3-830 |
from US $1.89 |
||
|
10
|
10
19052-MAC-680 Collar |
19052-MAC-680 |
from US $3.63 |
||
|
11
|
11
19101-MGE-305 Tank (c00) |
19101-MGE-305 |
US $55.85 |
||
|
12
|
12
19104-MGE-000 Tube |
19104-MGE-000 |
from US $9.18 |
||
|
13
|
13
19109-KPC-640 Cap, reserve tank |
19109-KPC-640 |
from US $3.96 |
||
|
14
|
14
19505-KS6-700 Clamp a, water hose |
19505-KS6-700 |
from US $7.65 |
||
|
15
|
15
19509-MM5-003 Clamp, radiator hose |
19509-MM5-003 |
from US $6.61 |
||
|
16
|
16
19510-MGE-000 Hose a1, radiator |
19510-MGE-000 |
from US $26.47 |
||
|
19
|
19
19512-MGE-000 Hose b, radiator |
19512-MGE-000 |
from US $22.98 |
||
|
21
|
21
19514-MGE-000 Hose, filler neck |
19514-MGE-000 |
from US $4.44 |
||
|
23
|
23
90120-KCR-003 Bolt-washer (6x16) |
90120-KCR-003 |
from US $2.74 |
||
|
24
|
24
90196-MBB-003 Bolt, flange (5mm) |
90196-MBB-003 |
from US $1.63 |
||
|
25
|
25
90303-MBB-003 Nut, special (5mm) |
90303-MBB-003 |
from US $2.39 |
||
|
26
|
26
90315-MK3-003 Nut, serrate (5mm) |
90315-MK3-003 |
from US $2.15 |
||
|
27
|
27
90320-747-000 Nut, spring, 6mm |
90320-747-000 |
from US $1.72 |
||
|
28
|
28
90522-170-700 Collar, gearshift lever setting |
90522-170-700 |
from US $1.57 |
||
|
29
|
29
93404-0602500 Bolt-washer, 6x25 |
93404-0602500 |
from US $0.62 |
||
|
30
|
30
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
31
|
31
95005-550-0810M Bulk hose (5.5x8000) |
95005-550-0810M |
from US $116.96 |
||
|
32
|
32
96300-0601800 Bolt, flange (6x18) |
96300-0601800 |
from US $0.62 |
