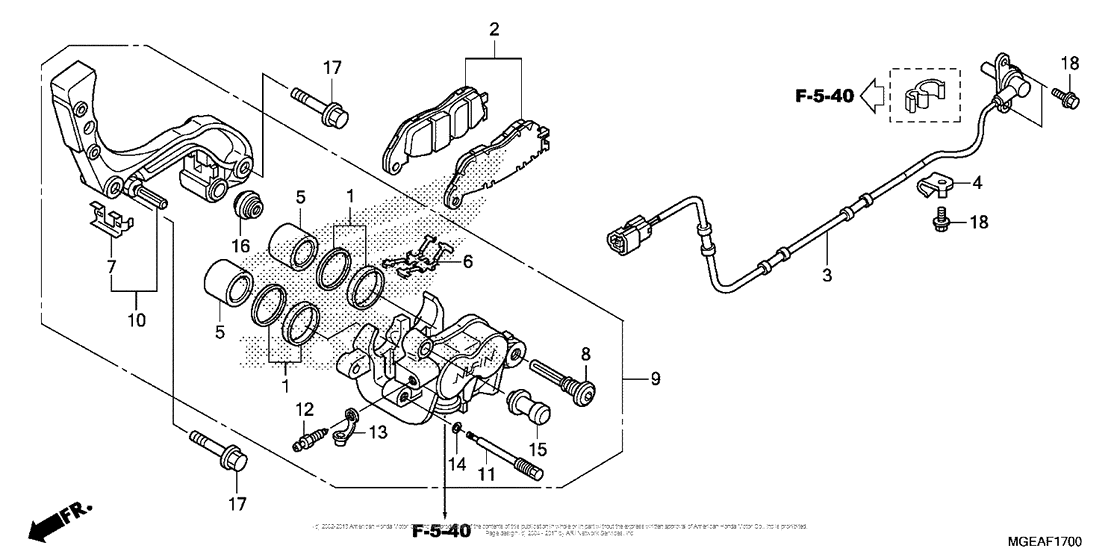

Rear Brake Caliper (1) Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06431-MA3-405 Seal set, piston |
06431-MA3-405 |
from US $5.74 |
||
|
2
|
2
06435-MFN-D12 PAD SET, RR. |
06435-MFN-D12 |
from US $74.90 |
||
|
3
|
3
38510-MGE-641 Sensor, rr, |
38510-MGE-641 |
from US $171.79 |
||
|
4
|
4
38515-MCT-910 Guide, sensor wire |
38515-MCT-910 |
from US $6.48 |
||
|
5
|
5
43107-MGE-006 Piston |
43107-MGE-006 |
from US $23.53 |
||
|
6
|
6
43108-MFN-D02 Spring, pad |
43108-MFN-D02 |
from US $3.92 |
||
|
7
|
7
43112-MGE-006 Retainer |
43112-MGE-006 |
from US $5.48 |
||
|
8
|
8
43131-KW3-006 Bolt, pin |
43131-KW3-006 |
from US $9.47 |
||
|
9
|
9
43150-MGE-006 Caliper sub-assy, |
43150-MGE-006 |
from US $302.73 |
||
|
10
|
10
43190-MGE-006 Bracket sub-assy, |
43190-MGE-006 |
from US $112.64 |
||
|
11
|
11
43215-KZ4-J41 Pin, hanger |
43215-KZ4-J41 |
from US $5.04 |
||
|
12
|
12
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
13
|
13
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
14
|
14
45111-MAJ-G41 O-ring (2.5x1.5) |
45111-MAJ-G41 |
from US $3.26 |
||
|
15
|
15
45132-166-016 Bush, pin |
45132-166-016 |
from US $1.40 |
||
|
16
|
16
45133-MA3-006 Boot b |
45133-MA3-006 |
from US $2.54 |
||
|
17
|
17
90132-MGE-000 Bolt, flange (10x45) |
90132-MGE-000 |
from US $4.44 |
||
|
18
|
18
96001-060-100-7 BoltFLANGE, 6X10 |
96001-060-100-7 |
from US $0.52 |
