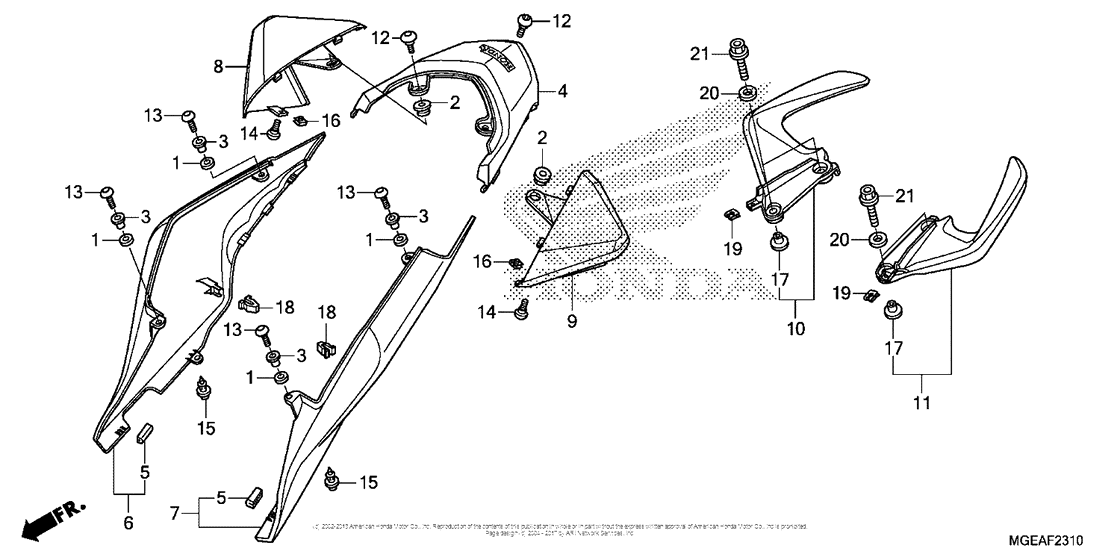

Rear Cowl Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18325-MBV-000 Washer, rubber |
18325-MBV-000 |
from US $1.11 |
||
|
2
|
2
32983-028-000 Grommet, wire harness |
32983-028-000 |
from US $1.92 |
||
|
3
|
3
50609-MCW-D00 Collar |
50609-MCW-D00 |
from US $2.59 |
||
|
4
|
4
77210-MGE-000ZB Cowl, rr, *tblack* |
77210-MGE-000ZB |
from US $19.86 |
||
|
5
|
5
77212-MFJ-D00 Protector, rubber |
77212-MFJ-D00 |
from US $1.19 |
||
|
6
|
6
77220-MGE-020ZD Cowl, r. *nh463m* |
77220-MGE-020ZD |
from US $129.20 |
||
|
7
|
7
77230-MGE-010ZD Cowl, l. *nh463m* |
77230-MGE-010ZD |
from US $121.09 |
||
|
8
|
8
77260-MGE-000ZA Cover, r, *tblack* |
77260-MGE-000ZA |
from US $14.15 |
||
|
9
|
9
77270-MGE-000ZA Cover, l, *tblack* |
77270-MGE-000ZA |
from US $12.88 |
||
|
10
|
10
77330-MGE-000 Grip, r. rr. |
77330-MGE-000 |
from US $47.60 |
||
|
11
|
11
77340-MGE-000 Grip, l. rr. |
77340-MGE-000 |
from US $47.60 |
||
|
12
|
12
90103-MGE-000 Screw (5x17) |
90103-MGE-000 |
from US $1.70 |
||
|
13
|
13
90113-MCJ-000 Screw, pan (5x15) |
90113-MCJ-000 |
from US $1.33 |
||
|
14
|
14
90114-MGE-000 Screw (5x11) |
90114-MGE-000 |
from US $2.16 |
||
|
15
|
15
90116-SP0-003 ClipBUMPER SEAL |
90116-SP0-003 |
from US $2.02 |
||
|
16
|
16
90312-MT3-000 Nut, clip (5mm) |
90312-MT3-000 |
from US $2.66 |
||
|
17
|
17
90450-KG8-000 Collar, 8mm |
90450-KG8-000 |
from US $3.70 |
||
|
18
|
18
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $2.70 |
||
|
19
|
19
90677-KAN-961 Nut, clip (5mm) |
90677-KAN-961 |
from US $2.16 |
||
|
20
|
20
94101-08700 WasherPLAIN, 8MM |
94101-08700 |
from US $0.37 |
||
|
21
|
21
96400-0803207 Bolt, flange (8x32) |
96400-0803207 |
from US $0.81 |
