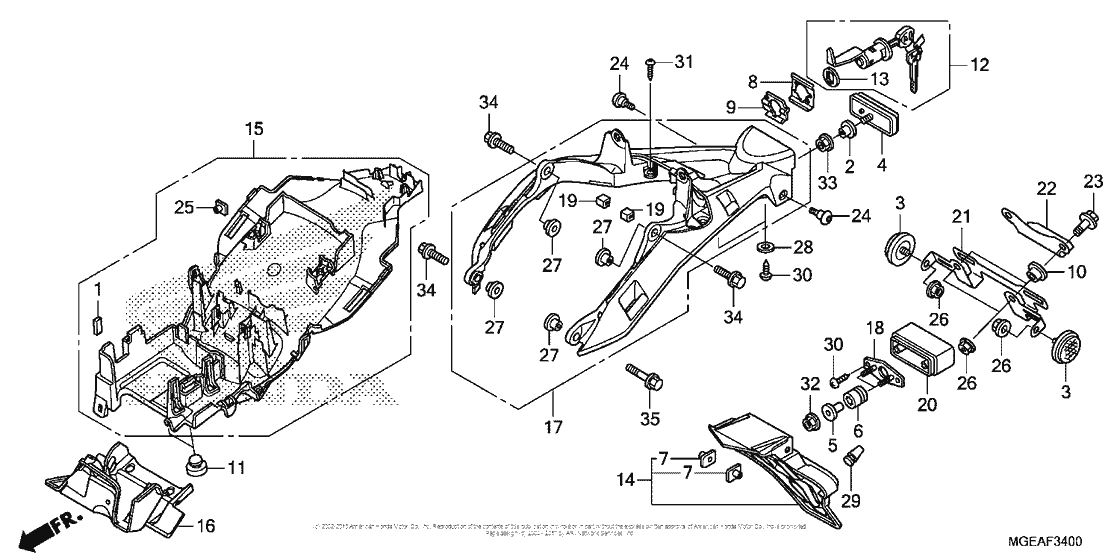

Rear Fender Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19105-MR8-300 Cushion |
19105-MR8-300 |
from US $1.70 |
||
|
2
|
2
33715-MC4-610 Collar |
33715-MC4-610 |
from US $2.66 |
||
|
3
|
3
33741-HB9-641 Reflector, rr. |
33741-HB9-641 |
from US $16.43 |
||
|
4
|
4
33741-MCJ-G00 Reflector, reflex |
33741-MCJ-G00 |
from US $23.80 |
||
|
4
|
4
33741-MCJ-G01 Reflector, reflex |
33741-MCJ-G01 |
from US $17.27 |
||
|
5
|
5
37243-KV3-830 Collar |
37243-KV3-830 |
from US $3.26 |
||
|
6
|
6
37244-MM4-000 Rubber |
37244-MM4-000 |
from US $3.92 |
||
|
7
|
7
61304-HB3-003 Nut, special, 6mm |
61304-HB3-003 |
from US $3.07 |
||
|
8
|
8
75581-MGE-000 Spring |
75581-MGE-000 |
US $6.14 |
||
|
9
|
9
75582-MGE-000 Plate, set |
75582-MGE-000 |
from US $3.47 |
||
|
10
|
10
77103-MEE-000 Collar, seat setting |
77103-MEE-000 |
from US $2.23 |
||
|
11
|
11
77110-KA3-730 Rubber |
77110-KA3-730 |
from US $2.07 |
||
|
12
|
12
77110-MGE-003 Lock assy,, seat |
77110-MGE-003 |
from US $22.78 |
||
|
13
|
13
77228-MEE-D00 Rubber, seat lock |
77228-MEE-D00 |
from US $2.79 |
||
|
14
|
14
80100-MFL-670 Brkt, license light |
80100-MFL-670 |
from US $19.72 |
||
|
15
|
15
80105-MGE-000 Fender b, rr, |
80105-MGE-000 |
from US $138.72 |
||
|
16
|
16
80106-MGE-010 Guard, rr. heat |
80106-MGE-010 |
from US $36.04 |
||
|
17
|
17
80115-MGE-000 Stay a, fender |
80115-MGE-000 |
from US $118.32 |
||
|
18
|
18
80118-MGE-670 Stay |
80118-MGE-670 |
from US $7.55 |
||
|
19
|
19
80119-MGE-300 Rubber, protector |
80119-MGE-300 |
from US $3.33 |
||
|
20
|
20
80201-MGE-670 Brkt, license light |
80201-MGE-670 |
from US $6.64 |
||
|
21
|
21
84700-MGE-672 Brkt, number plate |
84700-MGE-672 |
from US $13.91 |
||
|
22
|
22
84705-MGE-670 Plate, splash guard |
84705-MGE-670 |
from US $8.88 |
||
|
23
|
23
90001-PZ1-000 BoltFLANGE, 6X16 |
90001-PZ1-000 |
from US $1.33 |
||
|
24
|
24
90117-MFL-D20 Screw, pan (6x14) |
90117-MFL-D20 |
from US $2 |
||
|
25
|
25
90300-GC8-000 Nut special 4mm |
90300-GC8-000 |
from US $2.24 |
||
|
26
|
26
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
27
|
27
90450-KG8-000 Collar, 8mm |
90450-KG8-000 |
from US $3.70 |
||
|
28
|
28
90580-MJ0-000 Washer, volt & fuel |
90580-MJ0-000 |
US $2.19 |
||
|
29
|
29
90899-MFJ-A00 Plug, cone |
90899-MFJ-A00 |
from US $3.26 |
||
|
30
|
30
93903-24380 ScrewTAPPING, 4X12 |
93903-24380 |
from US $0.37 |
||
|
31
|
31
93903-24480 ScrewTAPPING, 4X16 |
93903-24480 |
from US $0.37 |
||
|
32
|
32
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.29 |
||
|
33
|
33
94050-05070 NutFLANGE, 5MM |
94050-05070 |
from US $0.44 |
||
|
34
|
34
96300-0802500 Bolt, flange (8x25) |
96300-0802500 |
from US $0.81 |
||
|
35
|
35
96300-0804500 Bolt, flange (8x45) |
96300-0804500 |
from US $0.89 |
