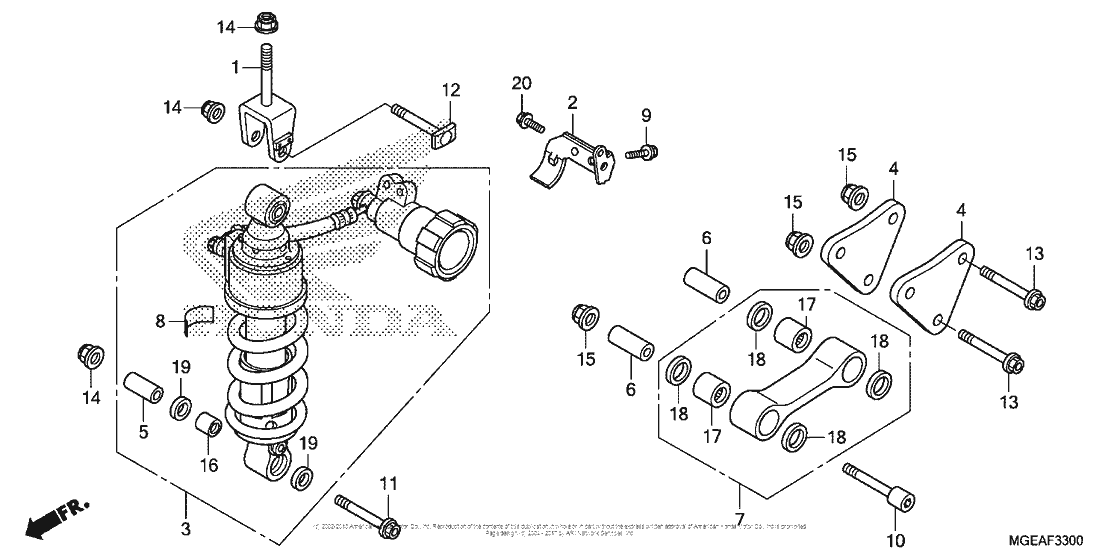

Rear Shock Absorber Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50230-MGE-000 Bracket, rr, cushion |
50230-MGE-000 |
from US $20.06 |
||
|
2
|
2
50770-MGE-010 Stay |
50770-MGE-010 |
US $7.65 |
||
|
3
|
3
52400-MGE-335 New Genuine Part |
52400-MGE-335 |
US $1,189.58 |
||
| replacement | |||||
|
3
|
3
52400-MGE-345 New Genuine Part |
52400-MGE-345 |
from US $995.52 |
||
|
4
|
4
52461-MGE-000 Plate, cushion arm |
52461-MGE-000 |
from US $31.54 |
||
|
5
|
5
52463-MAL-G00 Collar |
52463-MAL-G00 |
from US $5.27 |
||
|
6
|
6
52463-MBT-D20 Collar,cush arm |
52463-MBT-D20 |
from US $10.34 |
||
|
7
|
7
52475-MGE-000 Rod sub-assy, |
52475-MGE-000 |
from US $80.97 |
||
|
8
|
8
87516-MBL-610 Label, rr. |
87516-MBL-610 |
from US $3.18 |
||
|
9
|
9
90102-KSV-J00 BoltFLANGE, 6X16 |
90102-KSV-J00 |
from US $1.41 |
||
|
10
|
10
90108-MGE-000 Bolt, socket (12x69) |
90108-MGE-000 |
from US $9.92 |
||
|
11
|
11
90121-MGE-000 Bolt, flange (10x68) |
90121-MGE-000 |
from US $4.88 |
||
|
12
|
12
90122-MGE-000 Bolt (10x53,5) |
90122-MGE-000 |
from US $6.36 |
||
|
13
|
13
90123-MGE-000 Bolt, flange (12x70) |
90123-MGE-000 |
from US $7.10 |
||
|
14
|
14
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
15
|
15
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.26 |
||
|
16
|
16
91072-KT7-003 Bearing, needle, 17x24x20 (ntn) |
91072-KT7-003 |
from US $9.47 |
||
|
17
|
17
91072-MY1-005 Bearing (20x26x20) |
91072-MY1-005 |
from US $10.48 |
||
|
18
|
18
91254-KS6-003 Dust seal |
91254-KS6-003 |
from US $2.99 |
||
|
19
|
19
91262-KV3-831 Dust seal (17x24x5) |
91262-KV3-831 |
from US $2.83 |
||
|
20
|
20
96001-0601407 Bolt, flange, 6x14 |
96001-0601407 |
from US $0.59 |
||
