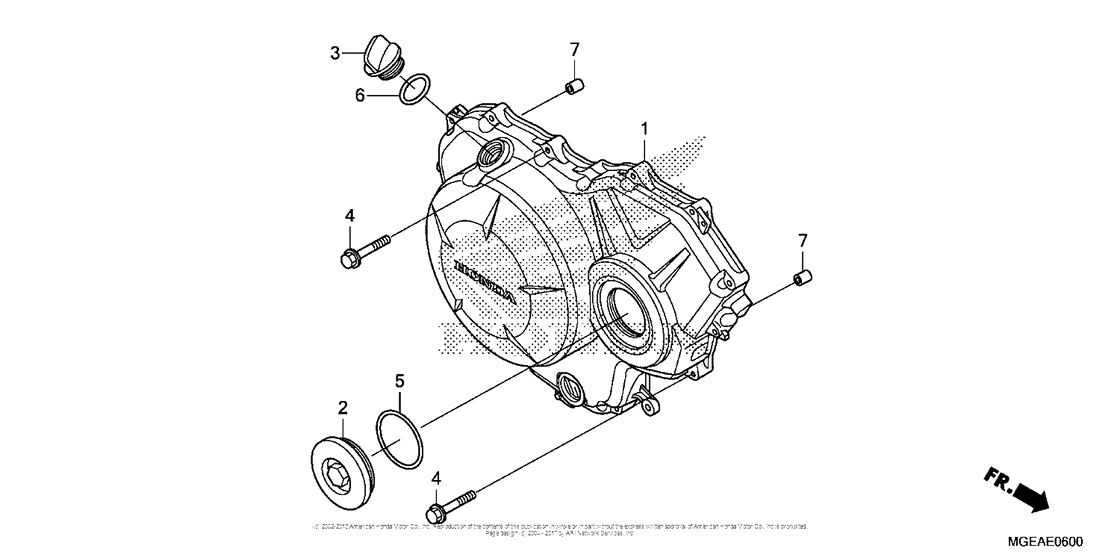

Right Crankcase Cover (1) Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-MGE-010 Cover assy,, r, |
11330-MGE-010 |
from US $368.56 |
||
|
2
|
2
11332-MBZ-D00 Cap (45mm) |
11332-MBZ-D00 |
from US $14.82 |
||
|
3
|
3
15611-KA4-710 Cap, oil filler |
15611-KA4-710 |
from US $7.22 |
||
|
4
|
4
90016-GHB-680 Bolt, flange (6x28) |
90016-GHB-680 |
from US $2.74 |
||
|
5
|
5
91301-ML7-003 O-ring (48.1x3.6) |
91301-ML7-003 |
from US $2.14 |
||
|
6
|
6
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
7
|
7
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
