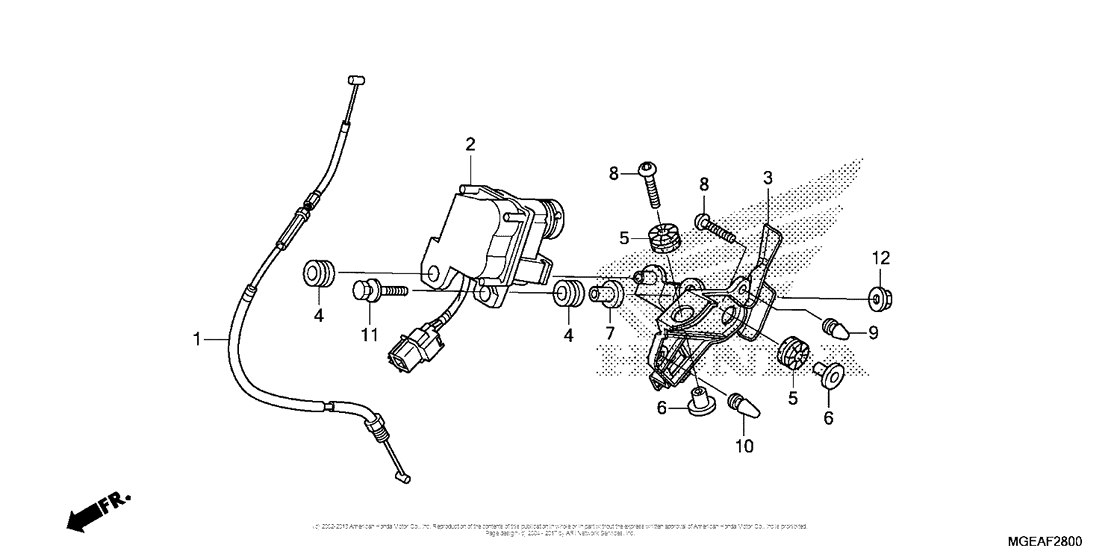

Servo Motor Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18910-MGE-000 Cable, ex, valve |
18910-MGE-000 |
from US $67.30 |
||
|
2
|
2
31420-MGE-641 Motor assy,, servo |
31420-MGE-641 |
from US $305.55 |
||
|
3
|
3
31421-MGE-000 Stay, servo motor |
31421-MGE-000 |
US $7.84 |
||
|
4
|
4
77205-KM4-000 Grommet |
77205-KM4-000 |
from US $2.22 |
||
|
5
|
5
77208-KW7-900 Rubber b |
77208-KW7-900 |
from US $2.74 |
||
|
6
|
6
80109-367-690 Collar c6.3, setting |
80109-367-690 |
from US $5.48 |
||
|
7
|
7
80114-KE2-940 Collar, rr. fender |
80114-KE2-940 |
from US $2.44 |
||
|
8
|
8
90105-MBZ-C50 Screw, pan (6x28) |
90105-MBZ-C50 |
from US $3.33 |
||
|
9
|
9
90899-422-610 Plug, cone type |
90899-422-610 |
from US $2.74 |
||
|
10
|
10
90899-MFJ-A00 Plug, cone |
90899-MFJ-A00 |
from US $3.26 |
||
|
11
|
11
93404-0602800 Bolt-washer, 6x28 |
93404-0602800 |
from US $0.59 |
||
|
12
|
12
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
