Starting Clutch Diagram Honda VFR1200 VFR

Year
2014
Model code
VFR1200F AC
Sales region
USA
Frame
JH2SC631 - EK400001
Engine Capacity
1200

Difficulties in parts search?

Parts list

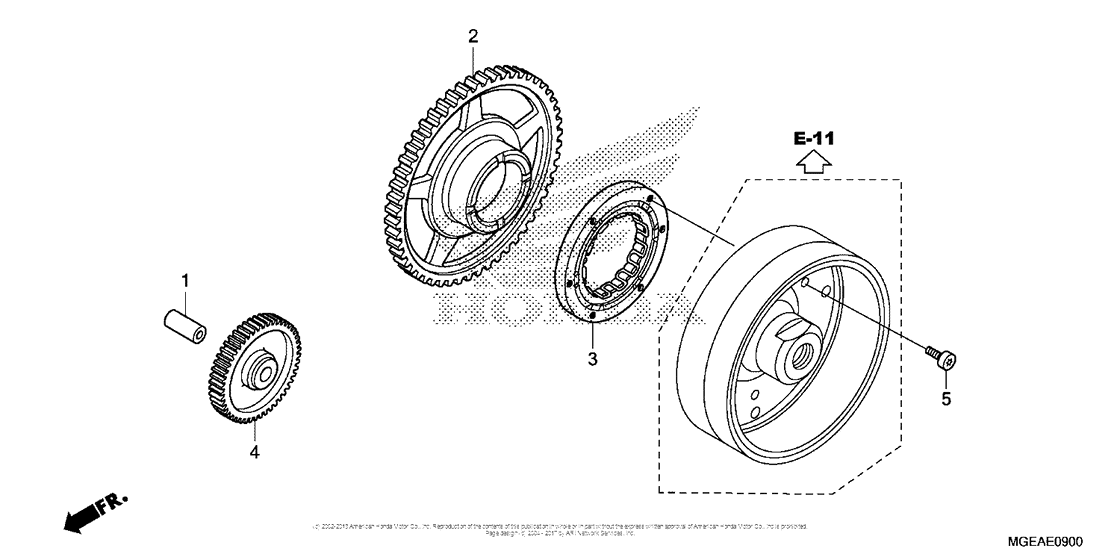

Starting Clutch

Difficulties in parts search?

Starting Clutch
Description OEM Part # Price
1
1

13111-GS7-000

Pin, piston

13111-GS7-000

from US $12.43

2
2

28110-MGE-000

Gear (55t)

28110-MGE-000

from US $120.38

3
3

28125-MV9-672

Clutch outer

28125-MV9-672

from US $172.72

4
4

28130-MGE-000

Gear (61t/11t)

28130-MGE-000

from US $58.29

5
5

90085-413-781

Bolt, socket (6mm)

90085-413-781

from US $4
