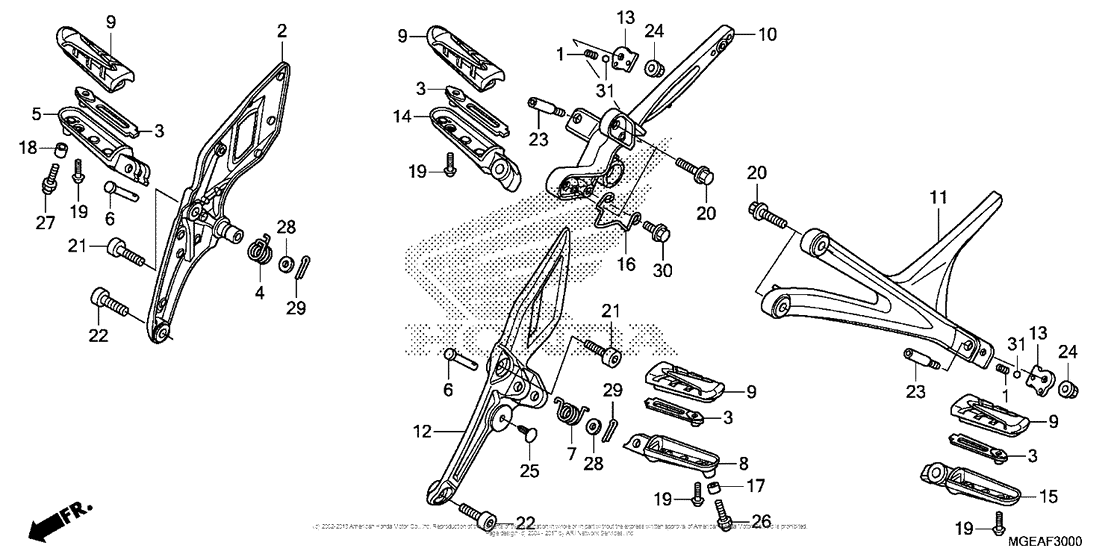

Step Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28333-300-000 Spring |
28333-300-000 |
from US $2.14 |
||
|
2
|
2
50600-MGE-D40 Holder, r. main step |
50600-MGE-D40 |
from US $127.16 |
||
|
3
|
3
50609-MGE-000 Plate, step setting |
50609-MGE-000 |
from US $4.74 |
||
|
4
|
4
50617-445-840 Spring, r |
50617-445-840 |
from US $3.11 |
||
|
5
|
5
50635-MBW-305 Arm, r. main step |
50635-MBW-305 |
from US $53.18 |
||
| replacement | |||||
|
5
|
5
50635-MBW-000 Arm, r. main step |
50635-MBW-000 |
from US $53.18 |
||
|
6
|
6
50639-MFL-D20 Pin, step bar |
50639-MFL-D20 |
from US $2.92 |
||
|
7
|
7
50644-445-840 Spring, l |
50644-445-840 |
from US $3.26 |
||
|
8
|
8
50645-MBW-305 Arm, l. main step |
50645-MBW-305 |
US $61.51 |
||
| replacement | |||||
|
8
|
8
50645-MBW-000 Arm, l. main step |
50645-MBW-000 |
from US $58.48 |
||
|
9
|
9
50661-MGE-305 Rub, main step (c00) |
50661-MGE-305 |
from US $8.94 |
||
| replacement | |||||
|
9
|
9
50661-MGE-000 RUBBER MAIN STEP |
50661-MGE-000 |
from US $9.62 |
||
|
10
|
10
50671-MGE-D40 Holder, r |
50671-MGE-D40 |
from US $114.75 |
||
|
11
|
11
50681-MGE-D40 Holder, l |
50681-MGE-D40 |
from US $114.75 |
||
|
12
|
12
50700-MGE-D40 Holder, l. main step |
50700-MGE-D40 |
from US $126.02 |
||
|
14
|
14
50720-MGE-315 Arm, r. (c00) |
50720-MGE-315 |
from US $67.58 |
||
|
15
|
15
50730-MGE-315 Arm, l. (c00) |
50730-MGE-315 |
from US $61.78 |
||
|
16
|
16
50780-MGE-000 Guide, ex, cable |
50780-MGE-000 |
from US $8.47 |
||
|
17
|
17
53709-MFL-000 Collar |
53709-MFL-000 |
from US $2.74 |
||
|
18
|
18
64152-MCA-000 Collar |
64152-MCA-000 |
from US $3.63 |
||
|
19
|
19
90118-MGE-000 Bolt, special (5x14) |
90118-MGE-000 |
from US $3.26 |
||
|
20
|
20
90136-MCA-000 Bolt, flange (8x30) |
90136-MCA-000 |
from US $2.59 |
||
|
21
|
21
90157-MGE-000 Bolt, socket (8x22) |
90157-MGE-000 |
from US $3.63 |
||
|
22
|
22
90158-MGE-000 Bolt, socket (10x22) |
90158-MGE-000 |
from US $4.07 |
||
|
23
|
23
90167-MGE-010 Bolt, special (6x16) |
90167-MGE-010 |
from US $8.14 |
||
|
24
|
24
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
25
|
25
90656-MGH-641 Clip, brush |
90656-MGH-641 |
from US $2.07 |
||
|
26
|
26
92501-06020-0B Bolt,cap,6x20 |
92501-06020-0B |
from US $1.33 |
||
|
27
|
27
92501-06030-0B Bolt (6x30) |
92501-06030-0B |
from US $1.55 |
||
|
28
|
28
9410208200 Washer, flat (8mm) |
9410208200 |
from US $0.44 |
||
|
29
|
29
94201-20152 Pin,split,2.0 |
94201-20152 |
from US $0.37 |
||
|
30
|
30
96001-0601407 Bolt, flange, 6x14 |
96001-0601407 |
from US $0.59 |
||
|
31
|
31
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
