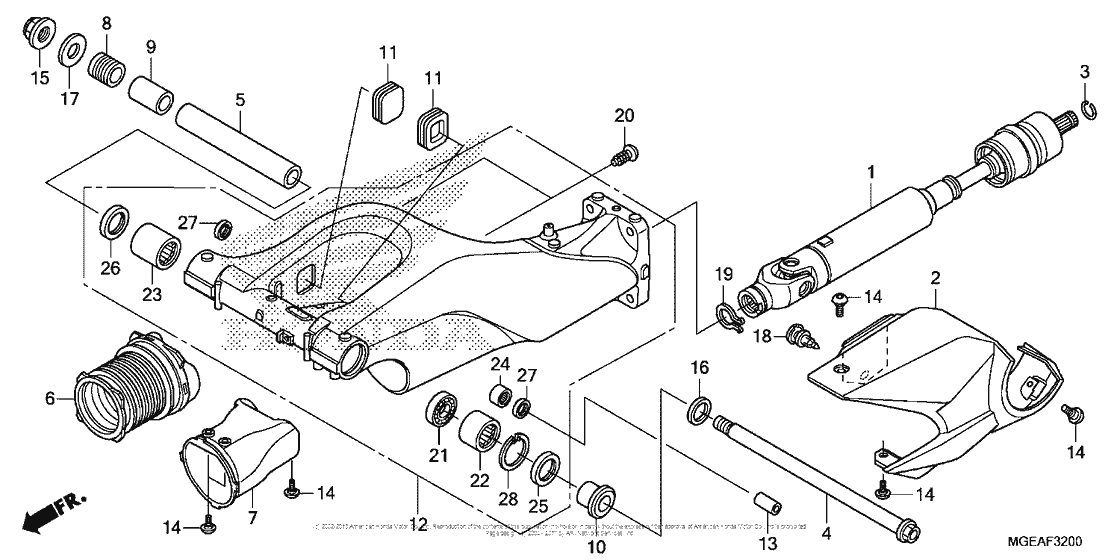

Swingarm Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40200-MGE-023 SHAFT ASSY,PROP |
40200-MGE-023 |
from US $1,344.92 |
||
|
2
|
2
41351-MGE-000 Cover, final gear |
41351-MGE-000 |
from US $43.11 |
||
|
3
|
3
44319-SC2-003 Set ring24X1.6 |
44319-SC2-003 |
US $5.64 |
||
|
4
|
4
52101-MGE-000 Bolt, swingarm pivot |
52101-MGE-000 |
from US $64.77 |
||
|
5
|
5
52102-MGE-000 Collar, swingarm |
52102-MGE-000 |
from US $17.88 |
||
|
6
|
6
52104-MGE-000 Boot, joint (NA) |
52104-MGE-000 |
from US $29.10 |
||
|
7
|
7
52105-MGE-000 Cvr, propeller shaft |
52105-MGE-000 |
from US $23.94 |
||
|
8
|
8
52109-MGE-000 Bolt |
52109-MGE-000 |
from US $21.70 |
||
|
9
|
9
52143-MGE-000 Collar, r |
52143-MGE-000 |
from US $15.50 |
||
|
10
|
10
52144-MFL-000 Collar, r |
52144-MFL-000 |
from US $14.96 |
||
|
11
|
11
52175-MGE-000 Grommet, swingarm |
52175-MGE-000 |
from US $3.32 |
||
|
12
|
12
52200-MGE-010 Swingarm sub-assy, |
52200-MGE-010 |
US $1,534.50 |
||
|
13
|
13
52463-MBT-D20 Collar,cush arm |
52463-MBT-D20 |
from US $10.34 |
||
|
14
|
14
90113-MGE-000 Bolt, special (6x12) |
90113-MGE-000 |
from US $2.74 |
||
|
15
|
15
90306-MFL-D31 Nut, u (22mm) |
90306-MFL-D31 |
from US $16.46 |
||
|
16
|
16
90501-MGE-000 Washer (26x41x3) |
90501-MGE-000 |
US $6.48 |
||
|
17
|
17
90502-MGE-000 Washer (22,2x44x3) |
90502-MGE-000 |
US $6.83 |
||
|
18
|
18
90652-MGE-003 Rivet, push pull |
90652-MGE-003 |
from US $2.44 |
||
|
19
|
19
90654-MGE-000 Circlip (26mm) |
90654-MGE-000 |
from US $7.10 |
||
|
20
|
20
90656-MGE-003 Plug, hole |
90656-MGE-003 |
from US $1.33 |
||
|
21
|
21
91053-MCJ-003 Bearing (6905) |
91053-MCJ-003 |
from US $14.96 |
||
|
22
|
22
91053-MCJ-751 Bearing (32x42x20) |
91053-MCJ-751 |
from US $33.73 |
||
|
23
|
23
91071-MCJ-003 Bearing (32x42x37) |
91071-MCJ-003 |
from US $18.63 |
||
|
24
|
24
91072-MY1-005 Bearing (20x26x20) |
91072-MY1-005 |
from US $10.48 |
||
|
25
|
25
91252-MCF-003 Dust seal (32x45x6) |
91252-MCF-003 |
from US $7.84 |
||
|
26
|
26
91253-MCF-003 Dust seal (32x42x6) |
91253-MCF-003 |
from US $7.25 |
||
|
27
|
27
91254-KS6-003 Dust seal |
91254-KS6-003 |
from US $2.99 |
||
|
28
|
28
94520-45000 CirclipINTERNAL, 45MM |
94520-45000 |
from US $1.04 |
