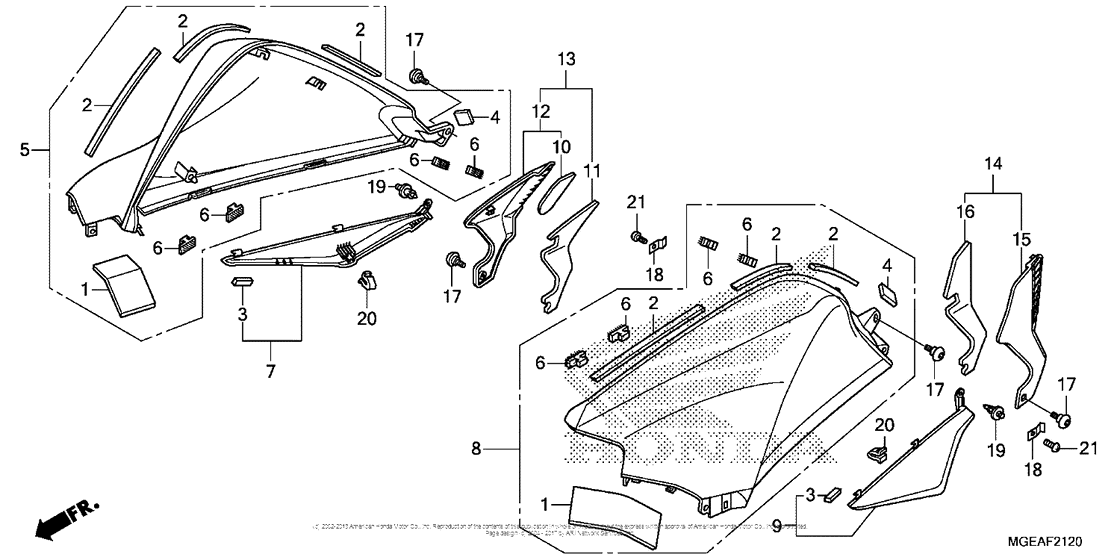

Tank Cover Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17269-MZ5-920 Mat |
17269-MZ5-920 |
from US $4.29 |
||
|
2
|
2
17559-MGE-300 Rubber b, fuel tank |
17559-MGE-300 |
from US $3.47 |
||
|
3
|
3
50953-MEL-300 Rubber |
50953-MEL-300 |
from US $1.41 |
||
|
4
|
4
64311-MEL-300 Rubber, protector |
64311-MEL-300 |
from US $3.03 |
||
|
5
|
5
64470-MGE-D10ZD Cvr, r. *nh463m* |
64470-MGE-D10ZD |
from US $281.52 |
||
|
6
|
6
64472-MGE-000 Fastener a (9x24) |
64472-MGE-000 |
from US $5.25 |
||
|
7
|
7
64475-MGE-000 Guard, r, knee |
64475-MGE-000 |
from US $12.80 |
||
|
8
|
8
64480-MGE-D10ZD Cvr, l. *nh463m* |
64480-MGE-D10ZD |
from US $281.52 |
||
|
9
|
9
64485-MGE-000 Guard, l, knee |
64485-MGE-000 |
from US $12.80 |
||
|
10
|
10
64704-MGE-300 Mat, r, pivot cover |
64704-MGE-300 |
from US $5.10 |
||
|
12
|
12
64750-MGE-000 Cover set, r, pivot |
64750-MGE-000 |
from US $20.57 |
||
|
15
|
15
64800-MGE-000 Cvr, l, pivot plate |
64800-MGE-000 |
from US $16.59 |
||
|
17
|
17
90114-MGE-000 Screw (5x11) |
90114-MGE-000 |
from US $2.16 |
||
|
18
|
18
90115-MGE-000 Clip, pivot cover |
90115-MGE-000 |
from US $4.22 |
||
|
19
|
19
90116-SP0-003 ClipBUMPER SEAL |
90116-SP0-003 |
from US $2.02 |
||
|
20
|
20
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $2.70 |
||
|
21
|
21
92101-05010-0A BoltHEX., 5X10 |
92101-05010-0A |
from US $0.37 |
