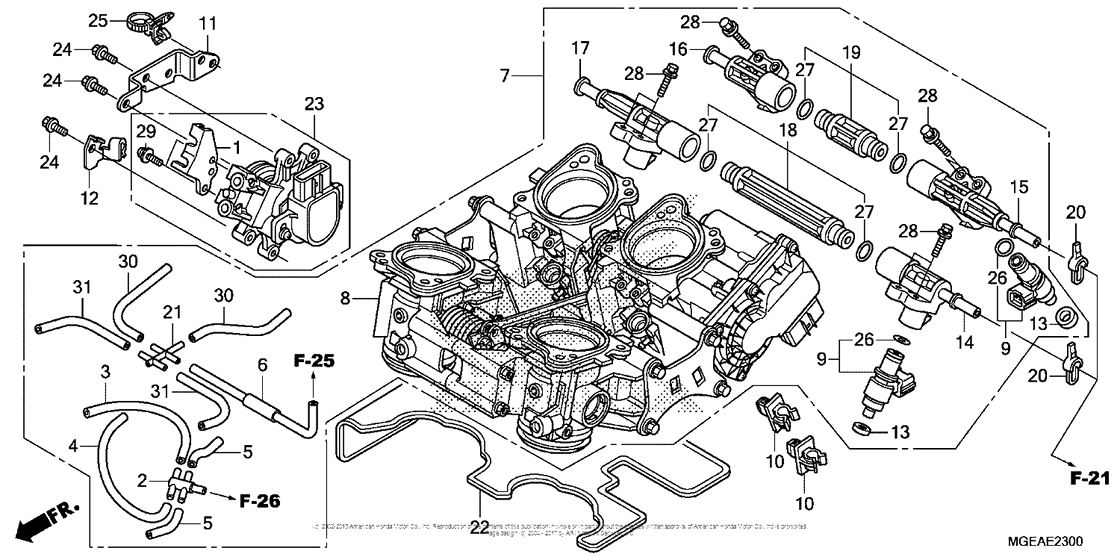

Throttle Body Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16169-MFL-003 Stay, wire |
16169-MFL-003 |
US $15.86 |
||
|
2
|
2
16180-ME5-761 Joint |
16180-ME5-761 |
from US $13.74 |
||
|
3
|
3
16197-MCZ-771 Tube |
16197-MCZ-771 |
US $8.08 |
||
|
4
|
4
16197-MFJ-L01 Tube |
16197-MFJ-L01 |
from US $4.88 |
||
|
5
|
5
16197-MGE-771 Tube (3.5x50) |
16197-MGE-771 |
US $9.47 |
||
|
6
|
6
16198-MGE-003 Tube (3,5x190) |
16198-MGE-003 |
US $8.31 |
||
|
7
|
7
16400-MGE-773 Body assy. (gnh0b a) |
16400-MGE-773 |
from US $2,168.32 |
||
|
8
|
8
16402-MGE-771 Body assy., throttle |
16402-MGE-771 |
from US $1,737.47 |
||
|
9
|
9
16450-MFL-003 Injector assy., fuel |
16450-MFL-003 |
from US $121.72 |
||
|
10
|
10
16453-MGE-003 Clip, hose (d15,8) |
16453-MGE-003 |
from US $2.24 |
||
|
11
|
11
16454-MGE-000 Stay, aps unit |
16454-MGE-000 |
US $9.88 |
||
|
12
|
12
16455-MGE-000 Stay |
16455-MGE-000 |
US $6.49 |
||
|
13
|
13
16472-MCW-000 Seal ring, injector |
16472-MCW-000 |
from US $2.89 |
||
|
14
|
14
16610-MGE-003 Pipe, fuel (#1) |
16610-MGE-003 |
from US $21.70 |
||
|
15
|
15
16620-MGE-003 Pipe, fuel (#2) |
16620-MGE-003 |
from US $21.70 |
||
|
16
|
16
16630-MGE-003 Pipe, fuel (#3) |
16630-MGE-003 |
from US $21.70 |
||
|
17
|
17
16640-MGE-003 Pipe, fuel (#4) |
16640-MGE-003 |
from US $21.70 |
||
|
18
|
18
16650-MGE-003 Joint set, fr, fuel |
16650-MGE-003 |
from US $30.69 |
||
|
19
|
19
16660-MGE-003 Joint set, rr, fuel |
16660-MGE-003 |
from US $25.64 |
||
|
20
|
20
16719-MFJ-D00 Damper, connector |
16719-MFJ-D00 |
from US $2.87 |
||
|
21
|
21
17201-MCJ-003 Joint (5way) |
17201-MCJ-003 |
from US $8.29 |
||
|
23
|
23
37971-MGE-672 Sensor unit |
37971-MGE-672 |
from US $184.46 |
||
|
24
|
24
90012-GHB-610 Bolt, flange (6x12) |
90012-GHB-610 |
from US $2 |
||
|
25
|
25
90672-SB2-003 StrapCABLE, 105MM (BLACK) |
90672-SB2-003 |
US $8.81 |
||
|
26
|
26
91301-P7A-004 O-ring |
91301-P7A-004 |
from US $1.80 |
||
|
27
|
27
91301-PLC-000 O-ring7.47X3.6 |
91301-PLC-000 |
from US $1.80 |
||
|
28
|
28
93403-050-250-0 Bolt-washer (5x25) |
93403-050-250-0 |
from US $0.74 |
||
|
29
|
29
93892-050-120-0 Screw-washer5X12 |
93892-050-120-0 |
from US $0.47 |
||
|
30
|
30
95005-350-0120M Bulk hose (3.5x1000) |
95005-350-0120M |
from US $5.70 |
||
|
31
|
31
95005-350-0120M Bulk hose (3.5x1000) |
95005-350-0120M |
from US $5.70 |
