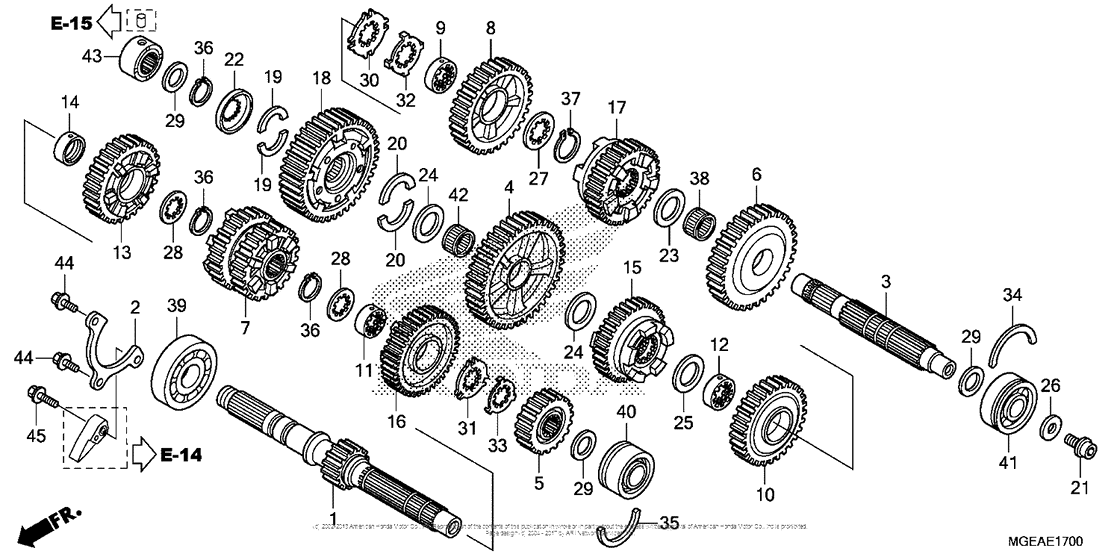

Transmission Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23210-MGE-010 Mainshaft (15t) |
23210-MGE-010 |
from US $161.84 |
||
|
2
|
2
23213-MGE-000 Plate |
23213-MGE-000 |
from US $5.25 |
||
|
3
|
3
23221-MGE-010 Countershaft |
23221-MGE-010 |
from US $149.26 |
||
|
4
|
4
23421-MGE-010 Gear (39t) |
23421-MGE-010 |
from US $99.96 |
||
|
5
|
5
23431-MGE-000 Gear (19t) |
23431-MGE-000 |
from US $47.60 |
||
|
6
|
6
23441-MGE-010 Gear (33t) |
23441-MGE-010 |
from US $105.67 |
||
|
7
|
7
23451-MGE-010 Gear (22t/25t) |
23451-MGE-010 |
from US $127.09 |
||
|
8
|
8
23461-MGE-000 Gear (30t) |
23461-MGE-000 |
from US $105.67 |
||
|
9
|
9
23462-MGE-000 Colr, spline (30x12) |
23462-MGE-000 |
from US $14.77 |
||
|
10
|
10
23481-MGE-000 Gear (29t) |
23481-MGE-000 |
from US $90.12 |
||
|
11
|
11
23482-MCJ-000 Colr, spline (28x16) |
23482-MCJ-000 |
from US $16.46 |
||
|
12
|
12
23482-MGE-000 Collar (30x33x12) |
23482-MGE-000 |
from US $11.66 |
||
|
13
|
13
23491-MGE-000 Gear (31t) |
23491-MGE-000 |
from US $107.10 |
||
|
14
|
14
23495-MM5-000 Collar (28x13) |
23495-MM5-000 |
from US $13.02 |
||
|
15
|
15
23501-MGE-010 Gear (32t) |
23501-MGE-010 |
from US $105.60 |
||
|
16
|
16
23511-MGE-010 Gear (33t) |
23511-MGE-010 |
from US $107.10 |
||
|
17
|
17
23521-MGE-010 Gear (31t) |
23521-MGE-010 |
from US $106.76 |
||
|
18
|
18
23530-MGH-640 Gear (39t) |
23530-MGH-640 |
from US $215.21 |
||
|
19
|
19
23545-MGE-000 Cotter, countershaft |
23545-MGE-000 |
from US $5.56 |
||
|
20
|
20
23546-MGE-010 Cotter b |
23546-MGE-010 |
from US $5.56 |
||
|
21
|
21
90037-ME9-000 Bolt, special (10mm) |
90037-ME9-000 |
from US $4.59 |
||
|
22
|
22
90402-MGE-010 Retainer |
90402-MGE-010 |
from US $5.40 |
||
|
23
|
23
90407-415-000 Washer (26mm) |
90407-415-000 |
from US $5.18 |
||
|
24
|
24
90409-MGE-000 Washer (30,6x40x1) |
90409-MGE-000 |
US $4.23 |
||
|
25
|
25
90410-MGE-000 Washer (30,2x36x1,5) |
90410-MGE-000 |
from US $3.40 |
||
|
26
|
26
90412-MGE-000 Washer |
90412-MGE-000 |
US $5.20 |
||
|
27
|
27
90452-MAT-000 Washer (30x36x1.5) |
90452-MAT-000 |
from US $2.15 |
||
|
28
|
28
90452-MR7-000 Washer (28x34x1.5) |
90452-MR7-000 |
from US $2.96 |
||
|
29
|
29
90455-ML7-000 Washer b (22mm) |
90455-ML7-000 |
from US $3.27 |
||
|
30
|
30
90463-MAT-000 Washer (30mm) |
90463-MAT-000 |
from US $2.07 |
||
|
31
|
31
90463-MR7-000 Washer (28mm) |
90463-MR7-000 |
from US $6.51 |
||
|
32
|
32
90464-MAT-000 Washer, lock (30mm) |
90464-MAT-000 |
from US $2.95 |
||
|
33
|
33
90464-MR7-000 Washer, lock (28mm) |
90464-MR7-000 |
from US $5.77 |
||
|
34
|
34
90601-MA6-000 Ring (56mm) |
90601-MA6-000 |
from US $2.80 |
||
|
35
|
35
90602-MGE-000 Set-ring (48mm) |
90602-MGE-000 |
from US $5.76 |
||
|
36
|
36
90603-MN4-000 Circlip (28mm) |
90603-MN4-000 |
from US $2.59 |
||
|
37
|
37
90604-MM5-000 Circlip (30mm) |
90604-MM5-000 |
from US $3.70 |
||
|
38
|
38
91001-MCH-003 Bearing (26x30x13) |
91001-MCH-003 |
from US $11.54 |
||
|
39
|
39
91001-MGE-003 Bearing (28x76x18) |
91001-MGE-003 |
from US $26.28 |
||
|
40
|
40
91002-MGE-003 Bearing (5204s) |
91002-MGE-003 |
from US $20.56 |
||
|
41
|
41
91003-MGE-003 Bearing (22x56x21,5) |
91003-MGE-003 |
from US $26.71 |
||
|
42
|
42
91006-MGE-003 Bearing (30x35x13) |
91006-MGE-003 |
from US $11.54 |
||
|
43
|
43
91025-MBT-F21 Brg,needle 22x38x |
91025-MBT-F21 |
from US $28.71 |
||
|
44
|
44
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
45
|
45
95801-0602800 Bolt, flange, 6x28 |
95801-0602800 |
from US $0.59 |
