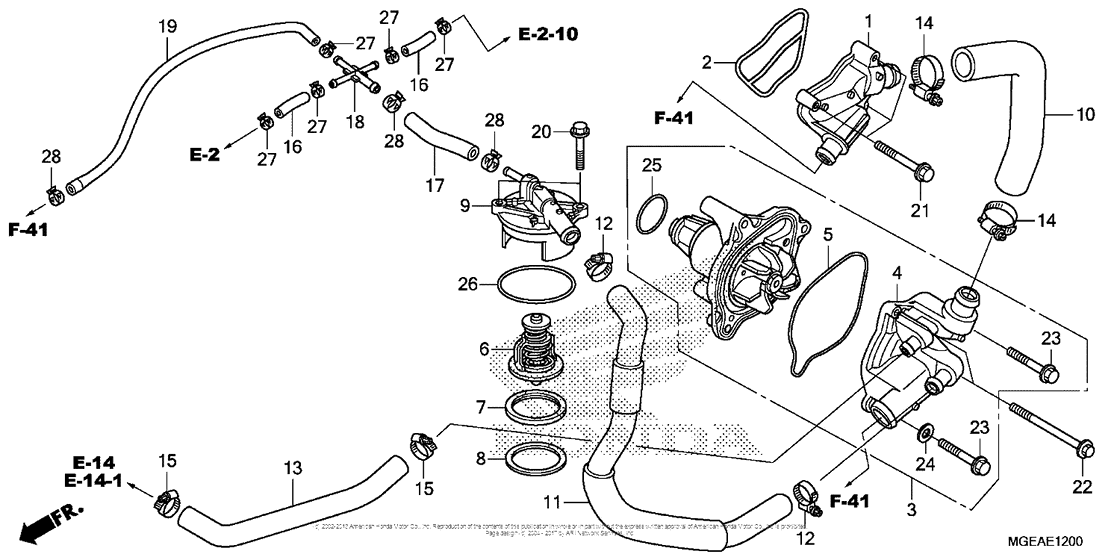

Water Pump Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19063-MGE-000 Joint, water |
19063-MGE-000 |
from US $58.15 |
||
|
2
|
2
19064-MGE-000 Gasket, water joint |
19064-MGE-000 |
from US $7.10 |
||
|
3
|
3
19200-MGE-000 Water pump assy |
19200-MGE-000 |
from US $251.60 |
||
|
4
|
4
19220-MGE-000 Cover, water pump |
19220-MGE-000 |
from US $64.77 |
||
|
5
|
5
19226-MGE-000 Gasket |
19226-MGE-000 |
from US $7.55 |
||
|
6
|
6
19300-MAT-761 Thermostat |
19300-MAT-761 |
from US $54.26 |
||
|
7
|
7
19305-MCA-A00 Rubber, thermostat |
19305-MCA-A00 |
from US $4.23 |
||
|
8
|
8
19306-MGE-000 Washer (48x57,4x1,6) |
19306-MGE-000 |
US $7.57 |
||
|
9
|
9
19315-MGE-000 Cover, thermostat |
19315-MGE-000 |
from US $52.11 |
||
|
10
|
10
19501-MGE-000 Hose a, water |
19501-MGE-000 |
from US $12.88 |
||
|
11
|
11
19503-MGE-000 Hose, water (lower) |
19503-MGE-000 |
from US $26.25 |
||
|
12
|
12
19504-KY1-003 Clamp (25mm) |
19504-KY1-003 |
from US $6.81 |
||
|
13
|
13
19504-MGE-000 Hose a |
19504-MGE-000 |
from US $6.81 |
||
|
14
|
14
19504-ZG8-000 Band, water hose |
19504-ZG8-000 |
US $9.23 |
||
|
15
|
15
19505-KS6-700 Clamp a, water hose |
19505-KS6-700 |
from US $7.65 |
||
|
16
|
16
19515-MGE-000 Tube a |
19515-MGE-000 |
from US $2 |
||
|
17
|
17
19516-MGE-000 Tube |
19516-MGE-000 |
from US $2.59 |
||
|
18
|
18
19518-MGE-000 Joint |
19518-MGE-000 |
from US $5.45 |
||
|
19
|
19
19519-MGE-000 Tube, water |
19519-MGE-000 |
from US $14.36 |
||
|
20
|
20
90016-GHB-660 Bolt, flange (6x22) |
90016-GHB-660 |
from US $2 |
||
|
21
|
21
90016-GHB-690 Bolt, flange (6x32) |
90016-GHB-690 |
from US $2.09 |
||
|
22
|
22
90016-GHB-760 Bolt, flange (6x65) |
90016-GHB-760 |
from US $2.29 |
||
|
23
|
23
90021-MGE-000 Bolt (6x25) (ct200) |
90021-MGE-000 |
from US $1.70 |
||
|
24
|
24
90463-ML7-000 Washer (6.5mm) |
90463-ML7-000 |
from US $1.35 |
||
|
25
|
25
91302-MB0-013 O-ring (32.95x2.62) |
91302-MB0-013 |
from US $1.73 |
||
|
26
|
26
91315-MGE-000 O-ring (63,5x1,9) |
91315-MGE-000 |
from US $4.44 |
||
|
27
|
27
95002-410-500-8 ClampTUBE(D10.5) |
95002-410-500-8 |
from US $0.74 |
||
|
28
|
28
95002-412-000-8 ClampTUBE (D12) |
95002-412-000-8 |
from US $0.74 |
