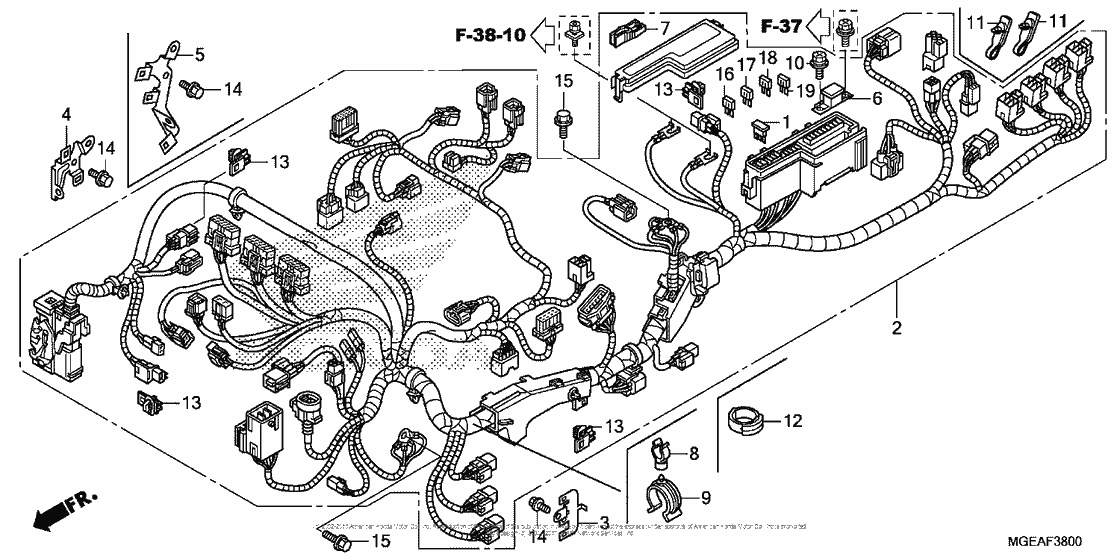

Wire Harness Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31730-MAS-601 Diode assy., three way (sumitomo) |
31730-MAS-601 |
from US $11.23 |
||
|
2
|
2
32100-MGE-C30 Wire harness |
32100-MGE-C30 |
US $2,091.06 |
||
|
3
|
3
32125-MGE-640 Stay, l, connector |
32125-MGE-640 |
from US $3.63 |
||
|
4
|
4
32127-MGE-640 Stay, r, connector |
32127-MGE-640 |
US $6.02 |
||
|
6
|
6
38213-SM4-003 FuseBLOCK (50A) |
38213-SM4-003 |
from US $6.36 |
||
|
7
|
7
38235-S04-003 PullerMINI FUSE (SUMITOMO) |
38235-S04-003 |
from US $1.58 |
||
|
10
|
10
90114-SG0-003 Bolt5X13 |
90114-SG0-003 |
from US $1.82 |
||
|
13
|
13
91565-SEL-003 ClipCOUPLER(BLACK) |
91565-SEL-003 |
from US $1.70 |
||
|
14
|
14
96001-0601002 Bolt, flange (6x10) |
96001-0601002 |
from US $0.74 |
||
|
15
|
15
96300-0601400 Bolt, flange (6x14) |
96300-0601400 |
from US $0.59 |
||
|
16
|
16
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
17
|
17
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
18
|
18
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
||
|
19
|
19
98200-43000 FuseMINI (30A) |
98200-43000 |
from US $0.74 |
