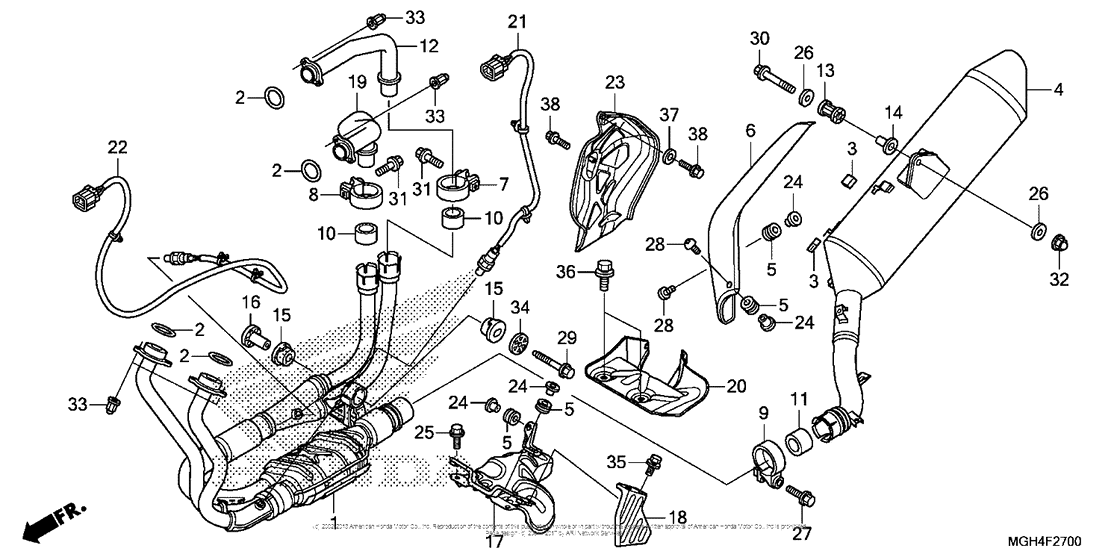

Exhaust Muffler Diagram Honda VFR1200 Crosstourer
- Year
- 2017
- Model code
- VFR1200X AC
- Sales region
- USA
- Frame
- JH2SC760 - HK100001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18150-MGH-A51 PIPE, EX. |
18150-MGH-A51 |
from US $2,121.86 |
||
|
2
|
2
18291-MM5-860 Gasket, ex. pipe |
18291-MM5-860 |
from US $3.13 |
||
|
3
|
3
18293-MN0-000 Rubber, protector |
18293-MN0-000 |
from US $3.11 |
||
|
4
|
4
18310-MGH-A51 MUFFLER |
18310-MGH-A51 |
from US $1,629.07 |
||
|
5
|
5
18345-MBT-610 Rubber |
18345-MBT-610 |
from US $2.52 |
||
|
6
|
6
18350-MGH-640 New Genuine Part |
18350-MGH-640 |
from US $111.52 |
||
|
7
|
7
18373-KAB-000 Band, ex. pipe |
18373-KAB-000 |
from US $10.57 |
||
|
8
|
8
18374-MN1-670 Band, l. ex. pipe |
18374-MN1-670 |
from US $10.26 |
||
|
9
|
9
18375-MCF-D30 Band, r. rr. muffler |
18375-MCF-D30 |
from US $29.24 |
||
|
10
|
10
18391-MB0-891 Gasket, muffler |
18391-MB0-891 |
from US $15.50 |
||
|
11
|
11
18392-MCF-003 Packing,muffler |
18392-MCF-003 |
from US $14.65 |
||
|
12
|
12
18420-MGH-641 PIPE, R. RR. EX. |
18420-MGH-641 |
from US $163.34 |
||
|
13
|
13
18421-KV3-950 Rubber,silencer m |
18421-KV3-950 |
from US $4 |
||
|
14
|
14
18422-MA6-000 Collar |
18422-MA6-000 |
from US $4.28 |
||
|
15
|
15
18422-MGE-000 Rubber |
18422-MGE-000 |
from US $17.46 |
||
|
16
|
16
18423-MGE-000 Collar |
18423-MGE-000 |
from US $6.17 |
||
|
17
|
17
18425-MGE-010 Protector, ex. pipe |
18425-MGE-010 |
from US $99.28 |
||
|
18
|
18
18426-MGE-000 Sub-protector |
18426-MGE-000 |
US $12.55 |
||
|
19
|
19
18470-MGH-641 PIPE, L. RR. EX. |
18470-MGH-641 |
from US $163.34 |
||
|
20
|
20
18475-MGE-000 Protector, ex, pipe |
18475-MGE-000 |
from US $42.82 |
||
|
21
|
21
36531-MGH-H21 SENSOR (#1,4) |
36531-MGH-H21 |
from US $211.20 |
||
|
22
|
22
36532-MGH-H21 SENSOR (#2,3) |
36532-MGH-H21 |
from US $211.20 |
||
|
23
|
23
50606-MGH-640 PROTECTOR, HEAT |
50606-MGH-640 |
from US $70.40 |
||
|
24
|
24
50609-MCW-D00 Collar |
50609-MCW-D00 |
from US $2.59 |
||
|
25
|
25
90004-GHB-630 Bolt, flange (6x16) |
90004-GHB-630 |
from US $1.19 |
||
|
26
|
26
90101-ML0-720 Washer, plain, 8mm |
90101-ML0-720 |
from US $2.96 |
||
|
27
|
27
90103-KCM-620 Bolt, flange (8x35) |
90103-KCM-620 |
from US $1.70 |
||
|
28
|
28
90106-KRG-000 Screw,pan,6x12 |
90106-KRG-000 |
from US $1.55 |
||
|
29
|
29
90127-MGE-000 Bolt, flange (8x65) |
90127-MGE-000 |
from US $3.63 |
||
|
30
|
30
90145-MGH-640 BOLT, FLANGE (8X45) |
90145-MGH-640 |
from US $2.44 |
||
|
31
|
31
90216-MM9-000 Bolt,flange,8x32 |
90216-MM9-000 |
from US $3.27 |
||
|
32
|
32
90301-KBW-940 Nut, cap (8mm) |
90301-KBW-940 |
from US $2.74 |
||
|
33
|
33
90304-438-000 Nut, cap, 6mm |
90304-438-000 |
from US $4.29 |
||
|
34
|
34
90505-MGE-000 Washer (8,5x38) |
90505-MGE-000 |
US $3.21 |
||
|
35
|
35
93401-0501000 Bolt-washer, 5x10 |
93401-0501000 |
from US $0.58 |
||
|
36
|
36
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
37
|
37
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
|
38
|
38
96001-060-200-4 Bolt, flange (6x20) |
96001-060-200-4 |
from US $0.59 |
