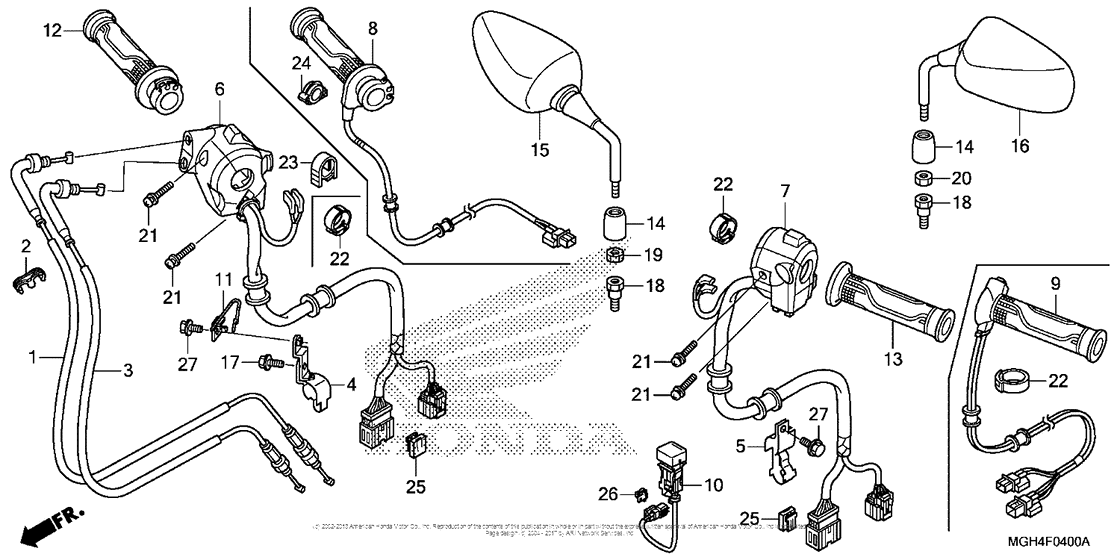

Switch + Cable + Mirror (1) Diagram Honda VFR1200 Crosstourer
- Year
- 2017
- Model code
- VFR1200X AC
- Sales region
- USA
- Frame
- JH2SC760 - HK100001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-MGH-D21 Cable A, Throttle |
17910-MGH-D21 |
from US $27.34 |
||
|
2
|
2
17915-MET-641 ClipTHROTTLE WIRE |
17915-MET-641 |
from US $2.63 |
||
|
3
|
3
17920-MGH-D21 Cable B, Throttle |
17920-MGH-D21 |
from US $27.34 |
||
|
4
|
4
35107-MGH-640 Clamp, r. wire |
35107-MGH-640 |
from US $5.40 |
||
|
5
|
5
35108-MGH-640 CLAMP, L. WIRE |
35108-MGH-640 |
from US $3.56 |
||
|
6
|
6
35130-MGH-N03 New Genuine Part |
35130-MGH-N03 |
from US $87.72 |
||
|
7
|
7
35200-MGH-H21 SWITCH, TURN SIGNAL |
35200-MGH-H21 |
US $173.49 |
||
|
10
|
10
38640-MGH-H21 SW, TORQUE CONTROL |
38640-MGH-H21 |
US $60.25 |
||
|
11
|
11
50161-MGH-D20 GUIDE |
50161-MGH-D20 |
from US $13.11 |
||
|
12
|
12
53140-MGE-305 Grip, throttle (c00) |
53140-MGE-305 |
US $32.38 |
||
| replacement | |||||
|
12
|
12
53140-MGE-000 GRIP ASSY THROTTLE |
53140-MGE-000 |
from US $29.78 |
||
|
13
|
13
53166-MGE-305
Grip, l. (c00)
|
53166-MGE-305 |
— | ||
| replacement | |||||
|
13
|
13
53166-MGE-000 GRIP L HANDLE |
53166-MGE-000 |
from US $15.57 |
||
|
14
|
14
88130-MGH-640 COVER, LOCK NUT |
88130-MGH-640 |
from US $6.22 |
||
|
15
|
15
88210-MGH-640 MIRROR, R |
88210-MGH-640 |
from US $123.76 |
||
|
16
|
16
88220-MGH-640 MIRROR, L |
88220-MGH-640 |
from US $79.56 |
||
|
17
|
17
90013-GHB-610 BOLT, FLANGE (6X12) |
90013-GHB-610 |
from US $1.92 |
||
|
18
|
18
90105-MGH-640 BOLT, ADAPTER (10MM) |
90105-MGH-640 |
from US $3.70 |
||
|
19
|
19
90301-MGH-640 NUT A, HEX. (12MM) |
90301-MGH-640 |
from US $4.14 |
||
|
20
|
20
90302-MGH-640 NUT B, HEX. (12MM) |
90302-MGH-640 |
from US $4.31 |
||
|
21
|
21
90507-MGE-640 Screw-washer (5x20) |
90507-MGE-640 |
from US $1.41 |
||
|
22
|
22
90683-KJ2-003 Clip, wire harness |
90683-KJ2-003 |
from US $3.42 |
||
|
23
|
23
90683-ZX2-003 CLIP, |
90683-ZX2-003 |
US $9.67 |
||
|
25
|
25
91554-SM4-003 HolderBRACKET (RED) |
91554-SM4-003 |
from US $2.52 |
||
|
26
|
26
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $1.61 |
||
|
27
|
27
96001-060-100-7 BoltFLANGE, 6X10 |
96001-060-100-7 |
from US $0.52 |
||
