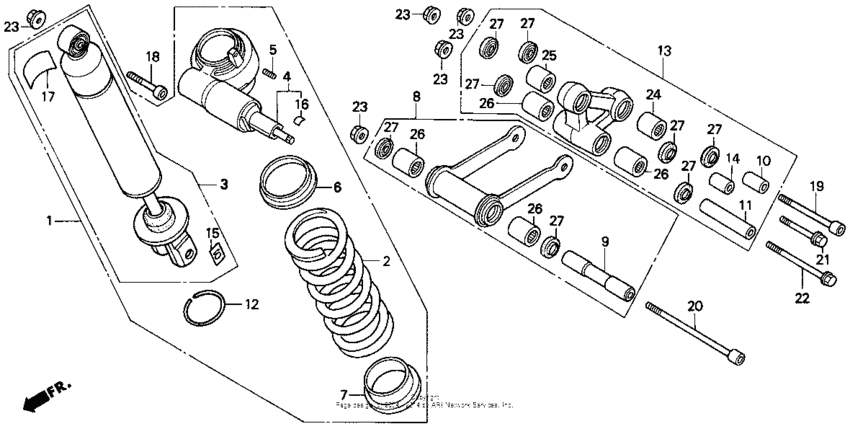

Rear shock absorber 92-93 Diagram Honda VFR750F Interceptor
- Year
- 1993
- Model code
- VFR750F A
- Sales region
- USA
- Frame
- JH2RC360*PM300001 - JH2RC360*PM300992
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-MY7-672
Shock absorber, rr.
|
52400-MY7-672 |
— | ||
|
2
|
2
52401-MY7-003 Spring, rr. shock |
52401-MY7-003 |
US $146.91 |
||
|
3
|
3
52410-MY7-672 Damper, rr. |
52410-MY7-672 |
US $500.94 |
||
|
4
|
4
52420-MT4-003 Adjuster, rr. shock |
52420-MT4-003 |
US $425.48 |
||
|
5
|
5
52455-ML7-003
Screw
|
52455-ML7-003 |
— | ||
|
6
|
6
52458-ML7-691 Seat, spring |
52458-ML7-691 |
from US $11.40 |
||
|
7
|
7
52459-ML7-691 Seat c, spring |
52459-ML7-691 |
from US $18.50 |
||
|
8
|
8
52460-MT4-000
Rod assy
|
52460-MT4-000 |
— | ||
|
9
|
9
52462-ML7-000 Collar |
52462-ML7-000 |
US $12.83 |
||
|
10
|
10
52463-KV3-000 Collar, cushion arm |
52463-KV3-000 |
from US $9.49 |
||
|
11
|
11
52463-MT4-000 Collar, conn rod |
52463-MT4-000 |
US $17.05 |
||
|
12
|
12
52464-ML7-003 Ring, stopper |
52464-ML7-003 |
from US $4.24 |
||
|
13
|
13
52470-MT4-000 Arm, shock absorber |
52470-MT4-000 |
US $275.30 |
||
|
14
|
14
52477-KT7-000
Collar, shock arm
|
52477-KT7-000 |
— | ||
|
15
|
15
52496-MR8-003 Label |
52496-MR8-003 |
US $6.55 |
||
|
16
|
16
87503-MM5-003 Label |
87503-MM5-003 |
US $5.87 |
||
|
17
|
17
87516-KV6-610 Label, rr. |
87516-KV6-610 |
from US $2.96 |
||
|
18
|
18
90110-ML7-000 Bolt, socket (10x55) |
90110-ML7-000 |
from US $3.18 |
||
|
19
|
19
90110-MR7-000 Bolt, socket (10x70) |
90110-MR7-000 |
from US $5.18 |
||
|
20
|
20
90111-ML7-000
Bolt (10x148)
|
90111-ML7-000 |
— | ||
|
21
|
21
90112-MR7-003
Bolt, flange (10x60)
|
90112-MR7-003 |
— | ||
|
22
|
22
90181-KE7-000 Bolt, flg (10x113) |
90181-KE7-000 |
from US $8.58 |
||
|
23
|
23
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
24
|
24
91071-KV3-005 Bearing, needle(17x24x25) |
91071-KV3-005 |
from US $6.70 |
||
|
25
|
25
91072-KT7-003 Bearing, needle, 17x24x20 (ntn) |
91072-KT7-003 |
from US $9.47 |
||
|
26
|
26
91072-MJ0-003 Bearing (17x24x25) |
91072-MJ0-003 |
from US $13.02 |
||
|
27
|
27
91202-HC5-005 Oil seal (17x27x5) |
91202-HC5-005 |
from US $2.50 |
