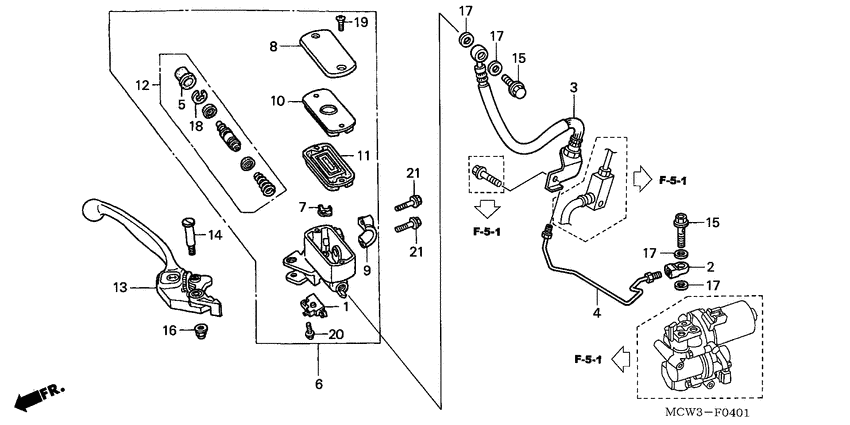

Fr. brake master cylinder (VFR800A) Diagram Honda VFR800 VFR
- Year
- 2003
- Model code
- VFR800A3
- Sales region
- France
- Frame
- JH2RC46D*3M500001 - JH2RC46D*3M599999
- Engine Capacity
- 800
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-MM5-600 Switch, fr. stop |
35340-MM5-600 |
from US $21.90 |
||
|
2
|
2
43321-MY4-003 Joint |
43321-MY4-003 |
from US $16.59 |
||
|
3
|
3
45124-MCW-D11 Hose, fr. |
45124-MCW-D11 |
from US $44.93 |
||
|
4
|
4
45135-MCW-D10 Pipe, fr |
45135-MCW-D10 |
from US $25.78 |
||
|
5
|
5
45504-410-003 Boot |
45504-410-003 |
from US $4.90 |
||
|
6
|
6
45510-MAJ-G01 M/cyl sub-assy, fr. |
45510-MAJ-G01 |
from US $231.20 |
||
|
7
|
7
45512-MA6-006 Protector |
45512-MA6-006 |
from US $3.11 |
||
|
8
|
8
45513-MM5-016 Cap, master cylinder |
45513-MM5-016 |
from US $16.63 |
||
|
9
|
9
45517-166-006 Holder |
45517-166-006 |
from US $11.81 |
||
|
10
|
10
45518-MM5-006 Plate, diaphragm |
45518-MM5-006 |
from US $8.79 |
||
|
11
|
11
45520-MM5-006 Diaphragm |
45520-MM5-006 |
from US $11.25 |
||
|
12
|
12
45530-MA4-671 Master cylinder set |
45530-MA4-671 |
from US $36.58 |
||
|
13
|
13
53170-MBW-006 Lever, r. handle |
53170-MBW-006 |
from US $27.77 |
||
|
14
|
14
90114-MA5-671 Bolt, r |
90114-MA5-671 |
from US $4.07 |
||
|
15
|
15
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
16
|
16
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.03 |
||
|
17
|
17
90545-300-000 Washer |
90545-300-000 |
from US $1.21 |
||
|
18
|
18
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
19
|
19
93600-040-121-G
Screw
|
93600-040-121-G |
— | ||
| replacement | |||||
|
19
|
19
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
20
|
20
93893-040-121-7
Screw-washer
|
93893-040-121-7 |
— | ||
| replacement | |||||
|
20
|
20
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
|
21
|
21
96001-0602207 Bolt, flange (6x22) |
96001-0602207 |
from US $0.81 |
||
