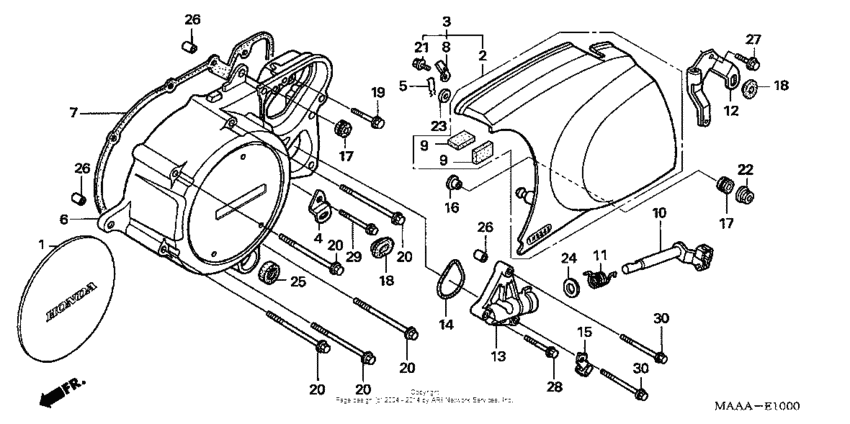

Left Crankcase Cover Diagram Honda VT1100 Shadow Spirit
- Year
- 2006
- Model code
- VT1100C A
- Sales region
- USA
- Frame
- 1HFSC180*6A000001 - 1HFSC180*6A099999
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11335-MCK-A50 Plate, emblem |
11335-MCK-A50 |
US $22.95 |
||
|
2
|
2
11340-MAA-A00 Cover, l. rr. |
11340-MAA-A00 |
from US $224.38 |
||
|
4
|
4
11342-MM8-000 Stay, l. rr. cover |
11342-MM8-000 |
US $7.63 |
||
|
5
|
5
11356-MAH-000 Clip, l. rr. cover |
11356-MAH-000 |
from US $3.55 |
||
|
6
|
6
11361-MCK-U50
Cover, l. crankcase
|
11361-MCK-U50 |
— | ||
|
7
|
7
11395-MAH-000 Gasket, l |
11395-MAH-000 |
from US $15.64 |
||
|
9
|
9
19105-MR8-300 Cushion |
19105-MR8-300 |
from US $1.70 |
||
|
10
|
10
22710-MAH-000 Lever, clutch |
22710-MAH-000 |
from US $34.92 |
||
|
11
|
11
22815-MAH-000 Spring, clutch lever |
22815-MAH-000 |
US $3.57 |
||
|
12
|
12
22821-MAA-A00 Receiver |
22821-MAA-A00 |
from US $19.87 |
||
|
13
|
13
22860-MAH-000 Holder |
22860-MAH-000 |
from US $71.10 |
||
|
14
|
14
22862-MAH-003 Gasket |
22862-MAH-003 |
from US $14.36 |
||
|
15
|
15
32111-MM8-000 Clamp, cable |
32111-MM8-000 |
from US $3.01 |
||
|
16
|
16
52159-KB7-000 Collar, chain guard |
52159-KB7-000 |
from US $4.29 |
||
|
17
|
17
80105-MG9-000 Cushion, air cleaner |
80105-MG9-000 |
from US $3.63 |
||
|
18
|
18
83551-GE2-000 Grommet, a/clnr hsg |
83551-GE2-000 |
from US $4.14 |
||
|
19
|
19
90006-GHB-700 Bolt, flange (6x35) |
90006-GHB-700 |
from US $2.15 |
||
|
20
|
20
90006-GHB-790 Bolt, flange (6x80) |
90006-GHB-790 |
from US $2.15 |
||
|
22
|
22
90302-187-000 Nut, flange (6mm) |
90302-187-000 |
from US $2.37 |
||
|
23
|
23
90504-MAH-000 Washer (9.5mm) |
90504-MAH-000 |
US $3.43 |
||
|
24
|
24
90553-702-000 Washer |
90553-702-000 |
from US $0.74 |
||
|
25
|
25
91204-425-003 Oil seal (12.5x25x8) |
91204-425-003 |
from US $5.62 |
||
|
26
|
26
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
27
|
27
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
28
|
28
95801-0603500 Bolt, flange, 6x35 |
95801-0603500 |
from US $0.59 |
||
|
29
|
29
95801-060-450-0 BoltFLANGE, 6X45 |
95801-060-450-0 |
from US $0.74 |
||
|
30
|
30
95801-0606000 Bolt, flange (6x60) |
95801-0606000 |
from US $0.74 |
