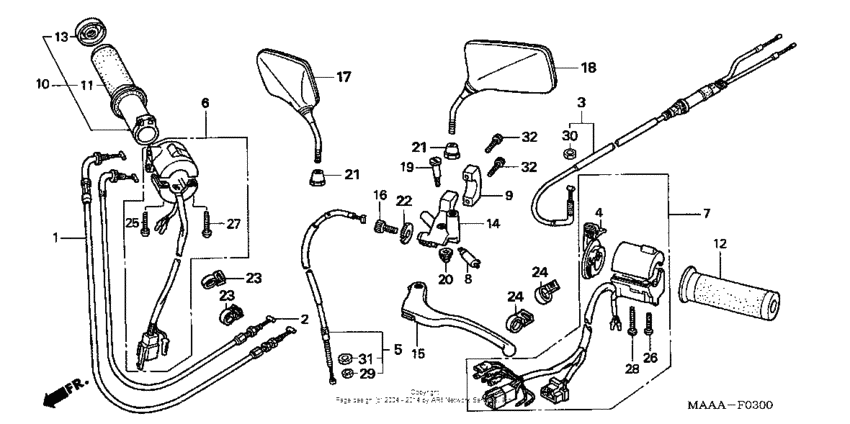

Handle lever + switch + cable Diagram Honda VT1100 Shadow Spirit
- Year
- 2007
- Model code
- VT1100C A
- Sales region
- USA
- Frame
- 1HFSC180*7A100001 -
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-MAH-000 Cable A, Throttle |
17910-MAH-000 |
US $110.50 |
||
|
2
|
2
17920-MAH-000 Cable B, Throttle |
17920-MAH-000 |
US $40.65 |
||
|
3
|
3
17950-MAH-000 Cable, choke |
17950-MAH-000 |
from US $74.12 |
||
|
4
|
4
17962-MZ0-671 Lever, choke |
17962-MZ0-671 |
from US $15.14 |
||
|
5
|
5
22870-MAH-000 Cable, clutch |
22870-MAH-000 |
from US $31.14 |
||
|
6
|
6
35013-MAH-A02 Set sw assy st kill |
35013-MAH-A02 |
US $167.77 |
||
|
7
|
7
35020-MAH-A00 Switch, turn signal |
35020-MAH-A00 |
US $146.12 |
||
|
8
|
8
35330-413-003 Switch, fr. lever |
35330-413-003 |
from US $14.96 |
||
|
9
|
9
45517-MR1-671 Holder |
45517-MR1-671 |
from US $13.47 |
||
|
10
|
10
53145-MM8-000 Grip assy., r. |
53145-MM8-000 |
from US $35.26 |
||
| replacement | |||||
|
10
|
10
53145-MFR-305 Grip, r. |
53145-MFR-305 |
US $44.37 |
||
|
11
|
11
53145-MM8-000 Grip assy., r. |
53145-MM8-000 |
from US $35.26 |
||
| replacement | |||||
|
11
|
11
53145-MFR-305 Grip, r. |
53145-MFR-305 |
US $44.37 |
||
|
12
|
12
53166-MFR-305
Grip, l. (co0)
|
53166-MFR-305 |
— | ||
| replacement | |||||
|
12
|
12
53166-KCR-000 Grip, l. handle |
53166-KCR-000 |
from US $26.26 |
||
|
13
|
13
53167-MM8-000 Cap, grip end |
53167-MM8-000 |
from US $11.42 |
||
|
14
|
14
53172-MR1-000 Bracket, handlebar |
53172-MR1-000 |
from US $34.14 |
||
|
15
|
15
53178-MAH-000 Control lever, l. |
53178-MAH-000 |
from US $14.69 |
||
| replacement | |||||
|
15
|
15
53178-MFR-305 Lever, l. handlebar |
53178-MFR-305 |
from US $21.76 |
||
|
16
|
16
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $5.92 |
||
|
17
|
17
88210-GCK-000 Mirror, r. |
88210-GCK-000 |
US $65.72 |
||
|
18
|
18
88220-GCK-000 Mirror, l. |
88220-GCK-000 |
US $87.31 |
||
|
19
|
19
90113-438-000 Bolt, l |
90113-438-000 |
from US $3.87 |
||
|
20
|
20
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.03 |
||
|
21
|
21
90314-323-000 Nut, lock |
90314-323-000 |
from US $3.02 |
||
|
22
|
22
90321-MA6-750 Nut, fixing |
90321-MA6-750 |
from US $7.99 |
||
|
23
|
23
90690-GHB-691 Clip, cable (12mm) |
90690-GHB-691 |
from US $1.78 |
||
|
24
|
24
90690-GHB-701 Clip, cable (17mm) |
90690-GHB-701 |
from US $2.22 |
||
|
25
|
25
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
26
|
26
93500-050220A Screw, pan, 5x22 |
93500-050220A |
from US $0.44 |
||
|
27
|
27
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
28
|
28
93500-050320A Screw, pan, 5x32 |
93500-050320A |
from US $0.44 |
||
|
29
|
29
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
30
|
30
94002-080700S Nut, hex. (8mm) |
94002-080700S |
from US $0.47 |
||
|
31
|
31
9403108000 Nut, hex. (8mm) |
9403108000 |
from US $0.45 |
||
|
32
|
32
96600-0602210 Bolt, socket (6x22) |
96600-0602210 |
from US $0.74 |
||
