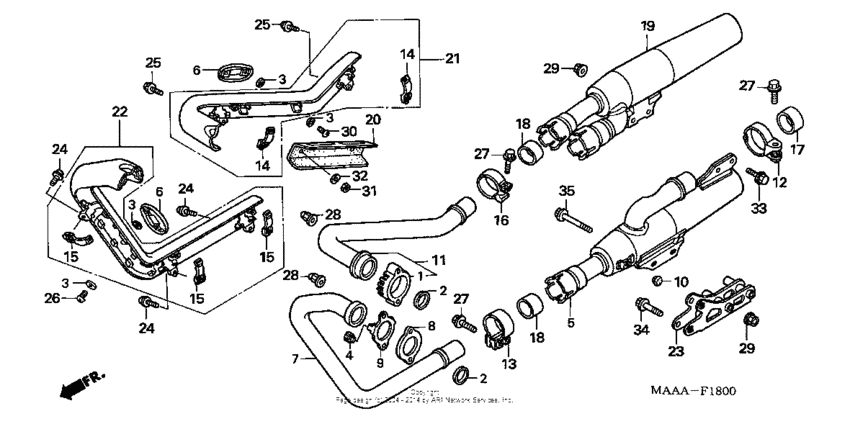

Muffler Diagram Honda VT1100 Shadow Spirit
- Year
- 2007
- Model code
- VT1100C A
- Sales region
- USA
- Frame
- 1HFSC180*7A100001 -
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-MG8-000 Joint, ex. pipe |
18231-MG8-000 |
from US $29.57 |
||
|
2
|
2
18291-MM8-880 Gasket, ex. pipe |
18291-MM8-880 |
from US $6.51 |
||
|
3
|
3
18292-GY1-860 Gasket |
18292-GY1-860 |
from US $4.22 |
||
|
4
|
4
18293-MN0-000 Rubber, protector |
18293-MN0-000 |
from US $3.11 |
||
|
5
|
5
18310-MAA-A01 Muffler (lower) |
18310-MAA-A01 |
US $419.36 |
||
|
6
|
6
18315-MAA-A00 Sub-cover, ex. pipe |
18315-MAA-A00 |
from US $23.99 |
||
|
7
|
7
18320-MAA-A01 Pipe, fr. ex. |
18320-MAA-A01 |
US $110.60 |
||
|
8
|
8
18325-MAH-000 Joint, ex. pipe |
18325-MAH-000 |
from US $15.78 |
||
|
9
|
9
18326-MAH-000
Holder, fr.
|
18326-MAH-000 |
— | ||
|
10
|
10
18366-GW8-670 Grommet |
18366-GW8-670 |
from US $2.37 |
||
|
11
|
11
18370-MAA-A01
Pipe, rr. ex.
|
18370-MAA-A01 |
— | ||
|
12
|
12
18375-MG7-000 Band, r. rr. muffler |
18375-MG7-000 |
from US $14.80 |
||
|
13
|
13
18376-KG0-003 Band, muffler |
18376-KG0-003 |
from US $16.18 |
||
|
14
|
14
18376-MAA-A01 Band, ex. muffler |
18376-MAA-A01 |
from US $9.70 |
||
|
15
|
15
18376-MM8-000 Band, ex. pipe cover |
18376-MM8-000 |
US $9.98 |
||
|
16
|
16
18377-MAA-A01 Band b, muffler |
18377-MAA-A01 |
from US $26.75 |
||
|
17
|
17
18392-MG7-750 Gasket, rr. muffler |
18392-MG7-750 |
from US $13.32 |
||
|
18
|
18
18392-MK4-000 Gasket, muffler |
18392-MK4-000 |
from US $14.50 |
||
|
19
|
19
18410-MAA-A01 Muffler (upper) |
18410-MAA-A01 |
US $419.36 |
||
|
20
|
20
18411-MM8-880 Cover a, ex. pipe |
18411-MM8-880 |
US $35.58 |
||
|
21
|
21
18418-MAA-A03 Cover, rr. ex.pipe |
18418-MAA-A03 |
US $175.64 |
||
|
22
|
22
18421-MAA-A01 Cover a, fr. |
18421-MAA-A01 |
US $329.12 |
||
|
23
|
23
18455-MAA-A00 Bracket, muffler |
18455-MAA-A00 |
from US $63.22 |
||
|
24
|
24
90101-MW3-600 Bolt (6x16) |
90101-MW3-600 |
from US $1.48 |
||
|
25
|
25
90102-MJ6-710 Bolt (6x25) |
90102-MJ6-710 |
from US $2.72 |
||
|
26
|
26
90110-SH3-000 ScrewPAN, 5X8 (STAY COVER) |
90110-SH3-000 |
from US $2.16 |
||
|
27
|
27
90161-ML7-000 Bolt, flange (8x35) |
90161-ML7-000 |
from US $2.49 |
||
|
28
|
28
90304-ME1-670 Nut, cap (8mm) |
90304-ME1-670 |
from US $4.59 |
||
|
29
|
29
90309-MR1-770 Nut, flange, 8mm |
90309-MR1-770 |
from US $3.83 |
||
|
30
|
30
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
31
|
31
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
32
|
32
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
33
|
33
95701-0802007 Bolt, flange, 8x20 |
95701-0802007 |
from US $0.59 |
||
|
34
|
34
95701-0804507 Bolt, flange, 8x45 |
95701-0804507 |
from US $0.74 |
||
|
35
|
35
95701-0808007 Bolt, flange (8x80) |
95701-0808007 |
from US $0.89 |
