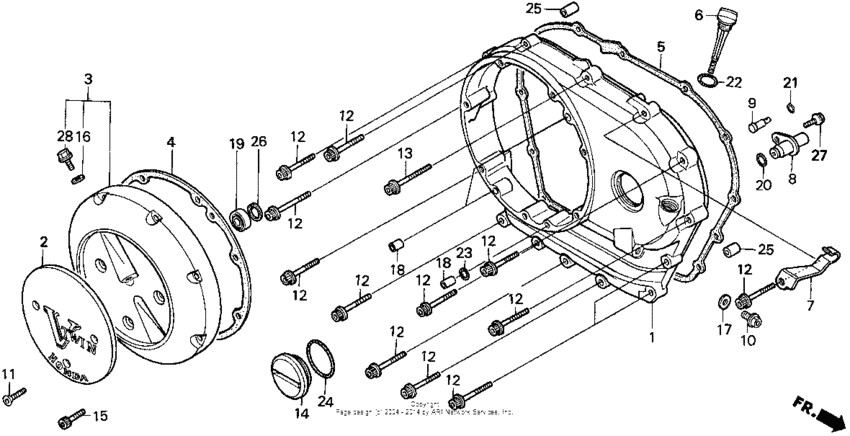

Vt1100c right crankcase cover Diagram Honda VT1100 Shadow
- Year
- 1996
- Model code
- VT1100C A
- Sales region
- USA
- Frame
- 1HFSC180*TA000001 -
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-MM8-000 Cover, r. crankcase |
11330-MM8-000 |
US $245.87 |
||
|
2
|
2
11362-MM8-000
Base, emblem
|
11362-MM8-000 |
— | ||
|
3
|
3
11370-MM8-000
Cover, Clutch
|
11370-MM8-000 |
— | ||
|
4
|
4
11372-MM8-880 Gasket, clutch cover |
11372-MM8-880 |
US $14.28 |
||
|
5
|
5
11394-MM8-881 Gasket, r |
11394-MM8-881 |
from US $22.29 |
||
|
6
|
6
15651-MM8-000 Dipstick, oil |
15651-MM8-000 |
US $10.44 |
||
|
8
|
8
22360-MG8-000
Valve assy.
|
22360-MG8-000 |
— | ||
|
9
|
9
22465-MM8-000 Orifice |
22465-MM8-000 |
US $6.87 |
||
|
10
|
10
90001-MM8-000 Bolt (8x14) |
90001-MM8-000 |
US $2.57 |
||
|
11
|
11
90073-MM8-000 Bolt (4x12) |
90073-MM8-000 |
from US $2.26 |
||
|
12
|
12
90077-MG8-000 Bolt (6x38) |
90077-MG8-000 |
US $4 |
||
|
13
|
13
90078-MG8-000
Bolt (6x50)
|
90078-MG8-000 |
— | ||
|
14
|
14
90087-KE9-000
Cap (45mm)
|
90087-KE9-000 |
— | ||
|
15
|
15
90117-GB2-000 Bolt, socket (6x30) |
90117-GB2-000 |
from US $3.63 |
||
|
16
|
16
90425-300-000 Washer (11mm) |
90425-300-000 |
from US $3.58 |
||
|
17
|
17
90441-MG8-000 Washer (8mm) |
90441-MG8-000 |
from US $2.22 |
||
|
18
|
18
90702-MG8-000 Pin, dowel (6x15) |
90702-MG8-000 |
from US $2.39 |
||
|
19
|
19
91220-MG8-003 Oil seal (7x18x5) |
91220-MG8-003 |
from US $5.03 |
||
|
20
|
20
91312-107-000 O-ring (7x1.7) |
91312-107-000 |
from US $2.37 |
||
|
21
|
21
91304-MC7-003 O-ring b (6.8x2.5) |
91304-MC7-003 |
from US $4.14 |
||
|
22
|
22
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
23
|
23
91308-MB0-003 O-ring, 5.7x2.2 (arai) |
91308-MB0-003 |
from US $3.03 |
||
|
24
|
24
91358-MG7-004
O-ring (41.5x2)
|
91358-MG7-004 |
— | ||
|
25
|
25
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
26
|
26
9452018000 Circlip, internal, 18mm |
9452018000 |
from US $0.58 |
||
|
27
|
27
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
28
|
28
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
