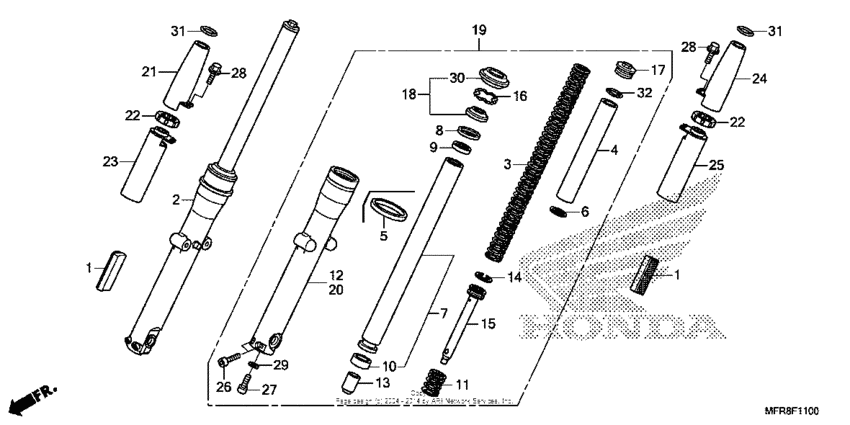

Front fork (1) Diagram Honda VT1300 Sabre
- Year
- 2014
- Model code
- VT1300CS A
- Sales region
- USA
- Frame
- JH2SC670*EK400001 -
- Engine Capacity
- 1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33740-MFR-B11 Reflector, fr. |
33740-MFR-B11 |
from US $17.27 |
||
|
2
|
2
51400-MFR-405 Fork assy., r. fr. |
51400-MFR-405 |
from US $688.52 |
||
|
3
|
3
51401-MFW-A01 Spring, fr. fork |
51401-MFW-A01 |
US $64.01 |
||
|
4
|
4
51402-KV3-701 Collar, spring |
51402-KV3-701 |
from US $14.50 |
||
|
6
|
6
51404-MB4-003 Plate, spring joint |
51404-MB4-003 |
from US $3.85 |
||
|
7
|
7
51410-MFW-A01 Pipe, fr. fork |
51410-MFW-A01 |
from US $240.77 |
||
|
8
|
8
51412-MB4-003 Ring, back-up |
51412-MB4-003 |
from US $5.28 |
||
|
9
|
9
51414-MFJ-A51 Bush, guide |
51414-MFJ-A51 |
from US $9.44 |
||
|
10
|
10
51415-MFJ-A51 Bush, slider |
51415-MFJ-A51 |
from US $6.79 |
||
|
11
|
11
51416-MM8-881 Spring, fr. rebound |
51416-MM8-881 |
US $5.59 |
||
|
12
|
12
51420-MFR-B71 Case, r. (lower) |
51420-MFR-B71 |
from US $333.71 |
||
|
13
|
13
51432-MV9-003 Piece, oil lock |
51432-MV9-003 |
from US $17.29 |
||
|
14
|
14
51437-MB4-003 Ring, piston |
51437-MB4-003 |
from US $7.77 |
||
|
15
|
15
51440-MFY-A01 Pipe, seat |
51440-MFY-A01 |
from US $35.62 |
||
|
16
|
16
51447-KA4-711 Ring |
51447-KA4-711 |
from US $1.93 |
||
|
17
|
17
51454-MM9-671 Bolt, fr. fork |
51454-MM9-671 |
from US $30.14 |
||
|
18
|
18
51490-MER-R61
Seal set, fr. fork
|
51490-MER-R61 |
— | ||
| replacement | |||||
|
18
|
18
51490-MKA-D81 Seal set, fr. fork |
51490-MKA-D81 |
from US $22.03 |
||
|
19
|
19
51500-MFR-405 Fork assy., l. fr. |
51500-MFR-405 |
from US $688.52 |
||
|
20
|
20
51520-MFR-B71 Case, l. (lower) |
51520-MFR-B71 |
from US $302.73 |
||
|
26
|
26
90109-MCR-D00 Bolt, socket (8x35) |
90109-MCR-D00 |
from US $2.74 |
||
|
27
|
27
90116-KV3-701 Bolt, socket (8mm) |
90116-KV3-701 |
from US $2.41 |
||
|
29
|
29
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $1.46 |
||
|
30
|
30
91254-MEE-D01 Dust seal |
91254-MEE-D01 |
from US $8.29 |
||
| replacement | |||||
|
30
|
30
91251-MKA-D81 DUST SEAL |
91251-MKA-D81 |
from US $7.87 |
||
|
32
|
32
91356-KF0-003 O-ring (21.7x3.5) |
91356-KF0-003 |
from US $2.80 |
||
