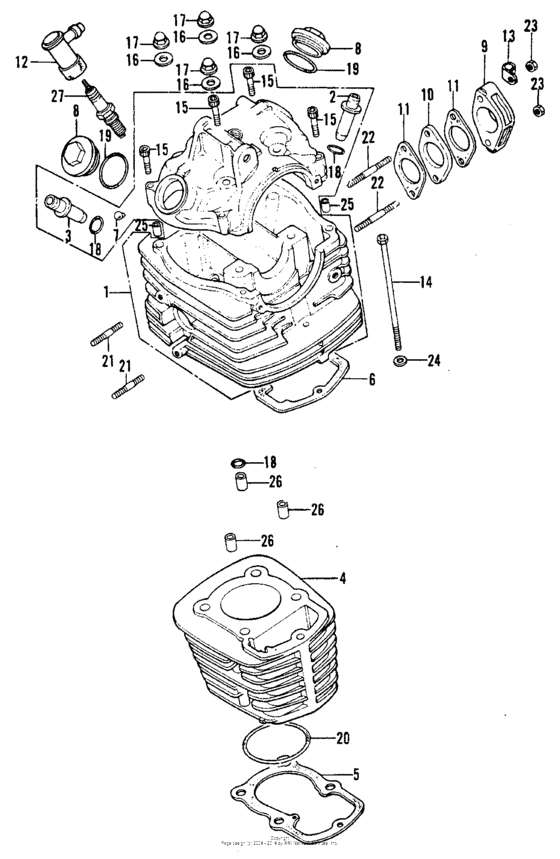

Cylinder + cylinder head 76 Diagram Honda XL100
- Year
- 1976
- Model code
- XL100 A
- Sales region
- USA
- Frame
- XL1001200003 -
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12000-384-010
Cylinder head assy
|
12000-384-010 |
— | ||
|
2
|
2
12021-107-310 Guide, valve |
12021-107-310 |
US $14.28 |
||
|
3
|
3
12023-439-300
Guide, ex. valve
|
12023-439-300 |
— | ||
|
4
|
4
12100-107-710
Cylinder
|
12100-107-710 |
— | ||
|
5
|
5
12191-KAY-690 Gasket, cylinder |
12191-KAY-690 |
from US $4.56 |
||
|
6
|
6
12251-439-405
Gasket, cyl hd
|
12251-439-405 |
— | ||
|
7
|
7
12271-383-000 Rubber, oil seal |
12271-383-000 |
from US $2.96 |
||
|
8
|
8
12361-383-000 Cap, tappet adjusting hole |
12361-383-000 |
from US $5.77 |
||
|
9
|
9
16212-384-000
Flange,carburetor
|
16212-384-000 |
— | ||
|
10
|
10
16213-107-306
Insulator, carb
|
16213-107-306 |
— | ||
|
11
|
11
16229-107-306
Gasket, insulator
|
16229-107-306 |
— | ||
|
12
|
12
30700-KE2-942 Cap, spark plug |
30700-KE2-942 |
from US $21.78 |
||
|
13
|
13
32906-107-000 Clip,tension.cord |
32906-107-000 |
US $3.26 |
||
|
14
|
14
90081-107-000 Bolt,hs.6mm |
90081-107-000 |
US $4 |
||
|
15
|
15
90081-383-000 Bolt, socket (6mm) |
90081-383-000 |
from US $4.47 |
||
|
16
|
16
90442-028-000 Washer (8mm) |
90442-028-000 |
from US $1.22 |
||
|
17
|
17
90443-107-000 Nut, cap, 8mm |
90443-107-000 |
from US $2.23 |
||
|
18
|
18
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.37 |
||
|
19
|
19
91303-107-000 O-ring, 35x3 |
91303-107-000 |
from US $2.45 |
||
| replacement | |||||
|
19
|
19
91303-KK3-830 O-ring (35x3) |
91303-KK3-830 |
from US $3.33 |
||
|
20
|
20
91308-500-000 O-ring (57x2.5) |
91308-500-000 |
from US $2.72 |
||
|
21
|
21
92900-06028-0B BoltSTUD, 6X28 |
92900-06028-0B |
from US $0.59 |
||
|
22
|
22
92700-06060-0B Bolt,stud,6x60 |
92700-06060-0B |
US $0.74 |
||
|
23
|
23
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
24
|
24
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
25
|
25
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
26
|
26
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
