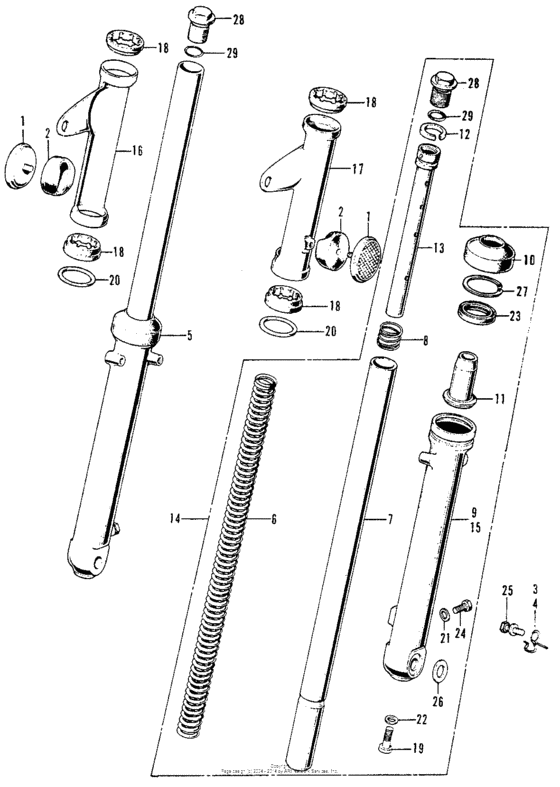

Front fork Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-340-670 Reflector,reflex |
33741-340-670 |
US $34.15 |
||
| replacement | |||||
|
1
|
1
33741-102-870 Reflector, fr. |
33741-102-870 |
from US $28.70 |
||
|
2
|
2
33744-331-770
Base,fr.reflector
|
33744-331-770 |
— | ||
|
4
|
4
45469-364-670
Clip, fr.
|
45469-364-670 |
— | ||
|
5
|
5
51400-110-791
Fork assy.,r.ff
|
51400-110-791 |
— | ||
|
6
|
6
51401-331-771
Spring,fr.cushion
|
51401-331-771 |
— | ||
|
7
|
7
51410-110-791
Pipe,front fork
|
51410-110-791 |
— | ||
|
8
|
8
51412-331-770 Spring, fr |
51412-331-770 |
from US $4.29 |
||
|
9
|
9
51421-110-791
Case, r. fr. fork
|
51421-110-791 |
— | ||
|
10
|
10
91254-436-003 Dust seal,fr,fork |
91254-436-003 |
from US $12.73 |
||
|
11
|
11
51432-331-770
Piece,oil lock
|
51432-331-770 |
— | ||
|
12
|
12
51437-331-770
Ring,piston
|
51437-331-770 |
— | ||
|
13
|
13
51440-331-773
Seat,under
|
51440-331-773 |
— | ||
|
14
|
14
51500-110-791
Fork assy.,l.ff
|
51500-110-791 |
— | ||
|
15
|
15
51521-110-791
Case, l. fr. fork
|
51521-110-791 |
— | ||
|
16
|
16
61311-364-670XW
Stay, r. *mrcr2*
|
61311-364-670XW |
— | ||
|
17
|
17
61312-364-670XW
Stay, l. *mrcr2*
|
61312-364-670XW |
— | ||
|
18
|
18
61315-110-000
Cushion,light
|
61315-110-000 |
— | ||
|
19
|
19
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
20
|
20
90502-110-000
Washer,32mm
|
90502-110-000 |
— | ||
|
21
|
21
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
22
|
22
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
23
|
23
51495-331-405 Oil seal set |
51495-331-405 |
from US $17 |
||
|
23
|
23
91255-331-671 Oil seal,31x43x12 |
91255-331-671 |
US $16.49 |
||
| replacement | |||||
|
23
|
23
51495-331-405 Oil seal set |
51495-331-405 |
from US $17 |
||
|
24
|
24
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
25
|
25
93401-0601200 Bolt-washer (6x12) |
93401-0601200 |
from US $0.52 |
||
|
26
|
26
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
27
|
27
94521-45000
Cir,clip,in.45mm
|
94521-45000 |
— | ||
|
28
|
28
9460527101 Bolt d1, fork |
9460527101 |
from US $5.45 |
||
|
29
|
29
9460830000 O-ring (23x2.4) |
9460830000 |
from US $0.89 |
||
