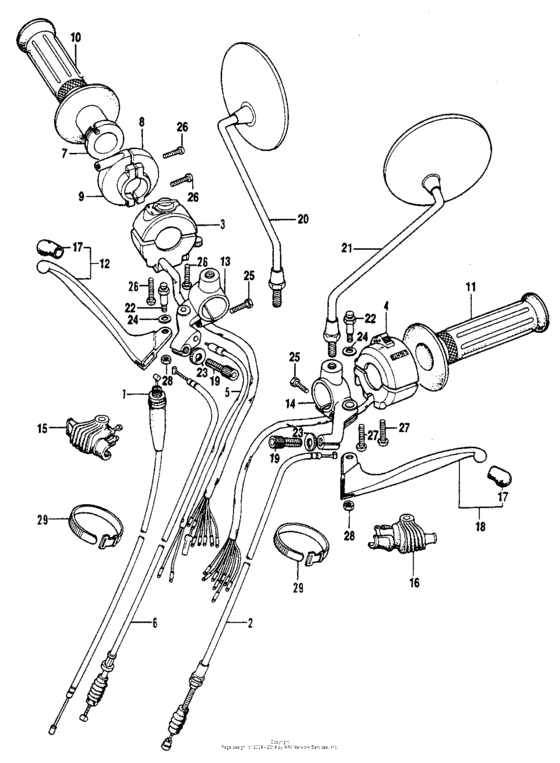

Handle switch + cable k1-76 Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-153-P00 Cable comp.,throt |
17910-153-P00 |
from US $32.37 |
||
|
2
|
2
22870-KBG-A00
Cable, clutch
|
22870-KBG-A00 |
— | ||
|
3
|
3
35150-364-671
Switch,lighting
|
35150-364-671 |
— | ||
|
4
|
4
35200-358-003
Switch, dimmer
|
35200-358-003 |
— | ||
|
5
|
5
35340-329-003 Switch, fr. stop |
35340-329-003 |
from US $13.74 |
||
|
6
|
6
45450-364-671
Cable, fr. brake
|
45450-364-671 |
— | ||
|
7
|
7
53141-355-000
Pipe.throt.grip
|
53141-355-000 |
— | ||
| replacement | |||||
|
7
|
7
53141-355-010 Pipe, throttle grip |
53141-355-010 |
US $16.32 |
||
|
7
|
7
53141-355-010 Pipe, throttle grip |
53141-355-010 |
US $16.32 |
||
|
8
|
8
53143-355-000
Case,upper
|
53143-355-000 |
— | ||
|
9
|
9
53144-355-000
Case,under
|
53144-355-000 |
— | ||
|
10
|
10
53165-116-670 Grip,r-handle |
53165-116-670 |
from US $14.84 |
||
|
11
|
11
53166-116-670 Grip,l-handle |
53166-116-670 |
from US $14.86 |
||
|
12
|
12
53175-KY0-980 Lever, r. handlebar |
53175-KY0-980 |
from US $25.98 |
||
|
13
|
13
53171-312-003 Bracket,r.lever |
53171-312-003 |
from US $47.46 |
||
|
14
|
14
53172-310-010 Brkt, l. handlebar |
53172-310-010 |
from US $38.90 |
||
|
15
|
15
53176-329-000 Cover,r-strg.lev. |
53176-329-000 |
from US $14.22 |
||
|
16
|
16
53179-329-000 Cover,l.strg.lev. |
53179-329-000 |
from US $16.33 |
||
|
17
|
17
95010-16001 Cap.handle.lever |
95010-16001 |
from US $2.07 |
||
|
18
|
18
53178-369-700 Lever,strg.handle |
53178-369-700 |
from US $20.94 |
||
|
19
|
19
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.85 |
||
|
20
|
20
88110-329-730
Mirror,r-back
|
88110-329-730 |
— | ||
|
21
|
21
88220-329-730
Mirror, l.
|
88220-329-730 |
— | ||
|
22
|
22
90114-329-000 Bolt,handle lev. |
90114-329-000 |
from US $8.58 |
||
|
23
|
23
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
24
|
24
90501-310-000 Washer (7x12) |
90501-310-000 |
from US $2.07 |
||
|
25
|
25
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
26
|
26
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
27
|
27
93500-050-280-A ScrewPAN, 5X28 |
93500-050-280-A |
from US $0.44 |
||
|
28
|
28
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
30
|
30
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
30
|
30
9501462100 Band b1, wire |
9501462100 |
from US $1.18 |
||
