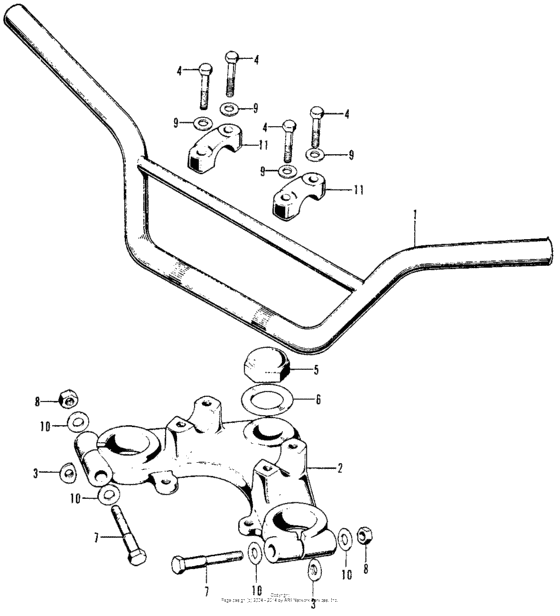

Handlebar + fork top bridge Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53100-364-670
Handlebar
|
53100-364-670 |
— | ||
|
2
|
2
53230-110-315SG
Bridge *a1*
|
53230-110-315SG |
— | ||
|
3
|
3
53235-300-000 Washer spacer |
53235-300-000 |
US $10.36 |
||
|
4
|
4
90117-065-000 Bolt hex 6x28 |
90117-065-000 |
from US $2.96 |
||
|
5
|
5
90304-159-000 Nut, steering stem |
90304-159-000 |
from US $6.22 |
||
|
6
|
6
90503-051-870 Washer |
90503-051-870 |
from US $3.18 |
||
|
7
|
7
93101-080-560-B
Bolt, hex. (8x56)
|
93101-080-560-B |
— | ||
|
8
|
8
94001-080-200-S Nut,hex 8m/m |
94001-080-200-S |
from US $0.52 |
||
|
9
|
9
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
10
|
10
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
11
|
11
9501421201 Holder a2, handlebar |
9501421201 |
US $4.74 |
