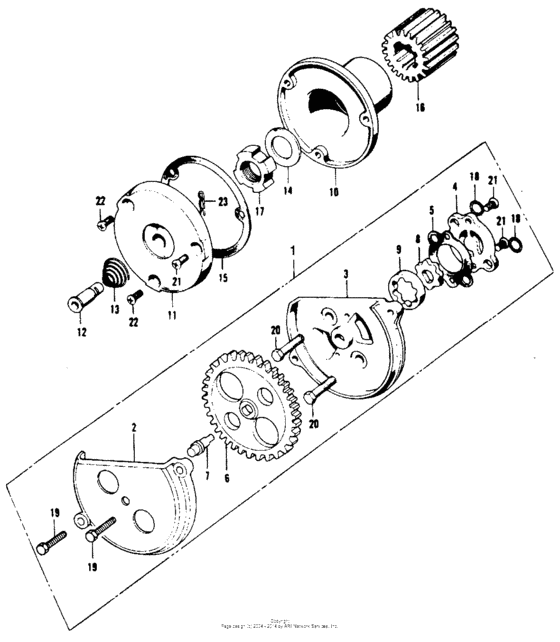

Oil filter rotor + oil pump Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
15106-330-010 Cover, oil pump gear |
15106-330-010 |
US $29.99 |
||
|
3
|
3
15111-324-030
Body, oil pump
|
15111-324-030 |
— | ||
|
4
|
4
15116-107-020 Plate, oil pump |
15116-107-020 |
US $11.25 |
||
|
5
|
5
15126-107-020 Gasket, oil pump |
15126-107-020 |
from US $1.78 |
||
|
6
|
6
15131-324-010 Gear,pump drive |
15131-324-010 |
from US $33.09 |
||
|
7
|
7
15136-330-010
Shaft,oil pump
|
15136-330-010 |
— | ||
|
8
|
8
15331-324-000 Rotor, oil pump |
15331-324-000 |
US $46.97 |
||
| replacements | |||||
|
8
|
8
15021-324-000 ROTOR SET (15331-324-000 + 15332-324-000), OIL PUMP |
15021-324-000 |
from US $28.04 |
||
|
8
|
8
90461-KSE-670 Washer, lock |
90461-KSE-670 |
from US $2.29 |
||
|
9
|
9
15332-324-000
Rotor, oil pump
|
15332-324-000 |
— | ||
| replacement | |||||
|
9
|
9
15021-324-000 ROTOR SET (15331-324-000 + 15332-324-000), OIL PUMP |
15021-324-000 |
from US $28.04 |
||
|
10
|
10
15430-324-000
Rotor,oil filter
|
15430-324-000 |
— | ||
|
11
|
11
15436-107-000 Cap |
15436-107-000 |
from US $16.32 |
||
|
12
|
12
15441-KCS-650 Through, oil |
15441-KCS-650 |
from US $5.77 |
||
|
12
|
12
15441-107-000 Through, oil |
15441-107-000 |
US $5.87 |
||
| replacement | |||||
|
12
|
12
15441-KCS-650 Through, oil |
15441-KCS-650 |
from US $5.77 |
||
|
13
|
13
15446-107-000 Spring, oil through |
15446-107-000 |
from US $3.11 |
||
|
14
|
14
15451-107-000 Washer, oil filter rotor locking |
15451-107-000 |
from US $3.70 |
||
|
15
|
15
15459-KWK-900 Gskt, oil filter cap |
15459-KWK-900 |
from US $2.59 |
||
| replacement | |||||
|
15
|
15
15459-K70-630 Gskt, oil filter cap |
15459-K70-630 |
from US $2.89 |
||
|
16
|
16
23121-324-000 Gear,primarydrive |
23121-324-000 |
US $78.30 |
||
|
17
|
17
90231-107-000
Nut,look.16mm
|
90231-107-000 |
— | ||
|
18
|
18
91304-KK3-830 O-ring (9.4x2.4) |
91304-KK3-830 |
from US $2.44 |
||
|
18
|
18
91304-107-000 O-ring (9.4x2.4) |
91304-107-000 |
US $3.72 |
||
| replacement | |||||
|
18
|
18
91304-KK3-830 O-ring (9.4x2.4) |
91304-KK3-830 |
from US $2.44 |
||
|
19
|
19
92101-05020-0A Bolt, hex., 5x20 |
92101-05020-0A |
from US $0.38 |
||
|
20
|
20
93600-060-280-A ScrewFLAT, 6X28 |
93600-060-280-A |
from US $0.52 |
||
|
21
|
21
93600-040-120-A ScrewFLAT, 4X12 |
93600-040-120-A |
from US $0.37 |
||
|
22
|
22
93700-050-120-A Screw, oval (5x12) |
93700-050-120-A |
from US $0.37 |
||
|
23
|
23
94251-08000 PinLOCK, 8MM |
94251-08000 |
from US $0.59 |
||
