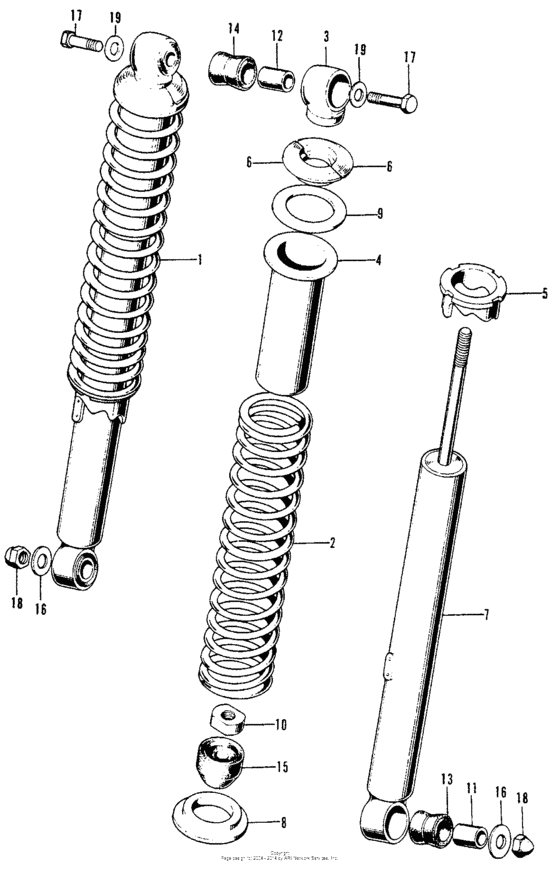

Rear shock absorber Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-364-670
Shock absorber, rr.
|
52400-364-670 |
— | ||
|
2
|
2
52401-364-670
Spring, rr. shock
|
52401-364-670 |
— | ||
|
3
|
3
52403-331-003
Joint (upper)
|
52403-331-003 |
— | ||
|
4
|
4
52406-331-003
Guide,rr cush spg
|
52406-331-003 |
— | ||
|
5
|
5
52422-455-000 Adjuster,spring |
52422-455-000 |
US $20.67 |
||
|
6
|
6
52424-331-003 Stopper,cushion |
52424-331-003 |
US $10.23 |
||
|
7
|
7
52430-110-791
Damper assy.,rear
|
52430-110-791 |
— | ||
|
8
|
8
52458-331-003
Seat,rr cush spg
|
52458-331-003 |
— | ||
|
9
|
9
52459-074-003
Seat,rr cushion
|
52459-074-003 |
— | ||
|
10
|
10
52482-331-003
Nut,lock 9mm
|
52482-331-003 |
— | ||
|
11
|
11
52486-056-000 Collar, rr. |
52486-056-000 |
from US $2.15 |
||
|
12
|
12
52486-074-000 Collar, cushion rubber bush (showa) |
52486-074-000 |
from US $2.37 |
||
|
13
|
13
52488-331-003 Rubber b, joint |
52488-331-003 |
from US $2.57 |
||
|
14
|
14
52489-331-003 Rubber a, joint |
52489-331-003 |
from US $2.37 |
||
|
15
|
15
52517-331-003
Rubber,rr cushion
|
52517-331-003 |
— | ||
|
16
|
16
90527-230-000 Washer, plain, 10.3mm |
90527-230-000 |
from US $2.87 |
||
|
17
|
17
92101-08040-0A Bolt, hex., 8x40 |
92101-08040-0A |
from US $0.59 |
||
|
18
|
18
94021-100200S Nut, cap (10mm) |
94021-100200S |
from US $0.89 |
||
|
19
|
19
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
