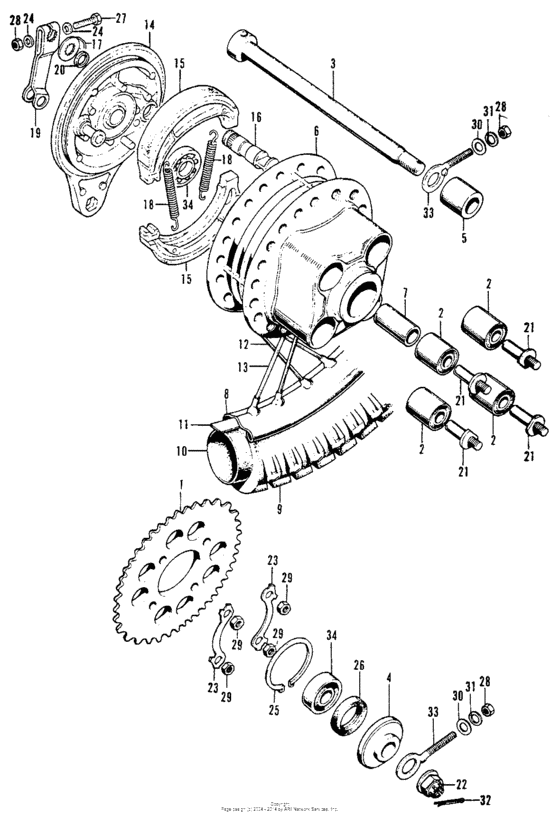

Rear wheel Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06430-GBJ-J10 Shoe set, brake |
06430-GBJ-J10 |
from US $36.72 |
||
|
1
|
1
41201-331-670
Sprocket,driven
|
41201-331-670 |
— | ||
|
2
|
2
41241-307-010 Bush, rr. |
41241-307-010 |
from US $6.81 |
||
|
3
|
3
42301-401-680 Axle,rear wheel |
42301-401-680 |
US $32.56 |
||
|
4
|
4
42304-107-000 Collar |
42304-107-000 |
US $6.96 |
||
|
5
|
5
42313-074-010
Collar rr panel
|
42313-074-010 |
— | ||
|
6
|
6
42610-355-000
Hub,rr.wheel
|
42610-355-000 |
— | ||
|
7
|
7
42620-107-010 Collar,distance |
42620-107-010 |
from US $5.48 |
||
|
8
|
8
42701-GE2-671
Rim,rr.wheel
|
42701-GE2-671 |
— | ||
|
9
|
9
42711-074-016
Tire,325-17nt-116
|
42711-074-016 |
— | ||
|
10
|
10
42712-110-003
Tube,wheel
|
42712-110-003 |
— | ||
|
11
|
11
42713-MG7-003 Flap,tire |
42713-MG7-003 |
US $9.79 |
||
|
12
|
12
97310-591-591-0 Spoke,bs 9x159.5 |
97310-591-591-0 |
from US $2.37 |
||
|
13
|
13
97518-591-581-0 Spoke,bs 9x159 |
97518-591-581-0 |
from US $2.37 |
||
|
14
|
14
43100-365-670
Panel rr brake
|
43100-365-670 |
— | ||
|
15
|
15
06430-GBJ-J10 Shoe set, brake |
06430-GBJ-J10 |
from US $36.72 |
||
|
16
|
16
43141-365-670
Cam,rear brake
|
43141-365-670 |
— | ||
|
17
|
17
43145-365-670
Plate
|
43145-365-670 |
— | ||
|
18
|
18
43151-110-000 Spring, brake shoe |
43151-110-000 |
from US $2.38 |
||
|
19
|
19
43410-041-020
Arm,rear brake
|
43410-041-020 |
— | ||
|
20
|
20
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
21
|
21
90128-216-000 Bolt,driven |
90128-216-000 |
from US $8.44 |
||
|
22
|
22
90305-401-680 Nut, axle, 14mm |
90305-401-680 |
from US $11.54 |
||
|
23
|
23
94108-13000 Washer,tongued |
94108-13000 |
from US $0.65 |
||
|
24
|
24
90525-001-000 WasherRR. BRAKE ARM |
90525-001-000 |
from US $1.78 |
||
|
25
|
25
90664-216-000 Circlip (58mm) |
90664-216-000 |
from US $5.18 |
||
|
26
|
26
91257-230-003 Oil seal (28x42x7) |
91257-230-003 |
from US $8.29 |
||
|
27
|
27
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
27
|
27
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
27
|
27
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
28
|
28
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
29
|
29
9403108000 Nut, hex. (8mm) |
9403108000 |
from US $0.45 |
||
|
30
|
30
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
31
|
31
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
32
|
32
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
32
|
32
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
32
|
32
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
33
|
33
95014-12100 Adjuster,chain |
95014-12100 |
from US $1.63 |
||
|
34
|
34
96140-63020 B/brg rad n/com |
96140-63020 |
from US $7.84 |
||
