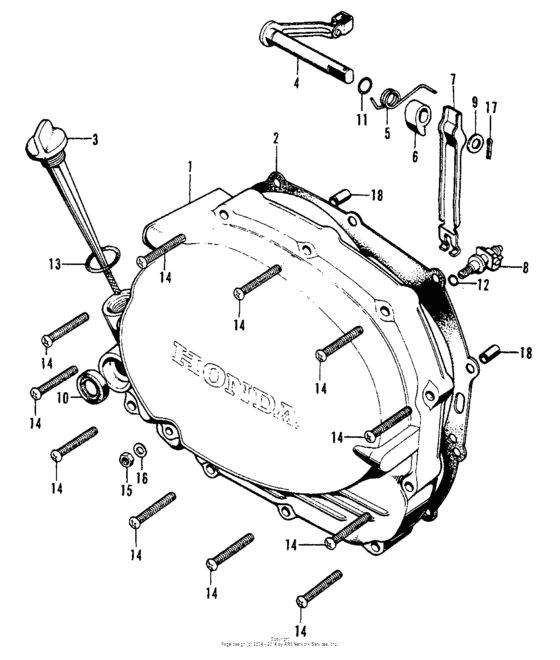

Right crankcase cover + clutch lever k-k1 Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-330-000
Cover, r. crankcase
|
11330-330-000 |
— | ||
|
2
|
2
11393-KY0-600 Gasket, r |
11393-KY0-600 |
from US $9.91 |
||
| replacement | |||||
|
2
|
2
11393-KY0-601 Gasket, r |
11393-KY0-601 |
from US $9.91 |
||
|
3
|
3
15650-365-000
Gauge,oil level
|
15650-365-000 |
— | ||
|
4
|
4
22710-107-010
Lever,clutch
|
22710-107-010 |
— | ||
|
5
|
5
22815-107-000
Spring,liver
|
22815-107-000 |
— | ||
|
6
|
6
22821-107-000
Cam,lifter.clutch
|
22821-107-000 |
— | ||
|
7
|
7
22830-107-000
Lever,clutch
|
22830-107-000 |
— | ||
|
8
|
8
22831-107-000
Screw,adjusting
|
22831-107-000 |
— | ||
|
10
|
10
91204-259-003 Oil seal (16x28x7) |
91204-259-003 |
from US $3.92 |
||
|
11
|
11
91306-PJ4-000 O-ring6.8X1.9 |
91306-PJ4-000 |
from US $1.78 |
||
|
12
|
12
91301-704-000 O-ring, 6mm |
91301-704-000 |
from US $2.56 |
||
|
13
|
13
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
13
|
13
91307-035-000 O-ring (18x3) |
91307-035-000 |
from US $4 |
||
|
14
|
14
93500-060400A Screw, pan (6x40) |
93500-060400A |
from US $0.52 |
||
|
15
|
15
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
16
|
16
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
17
|
17
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
18
|
18
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
