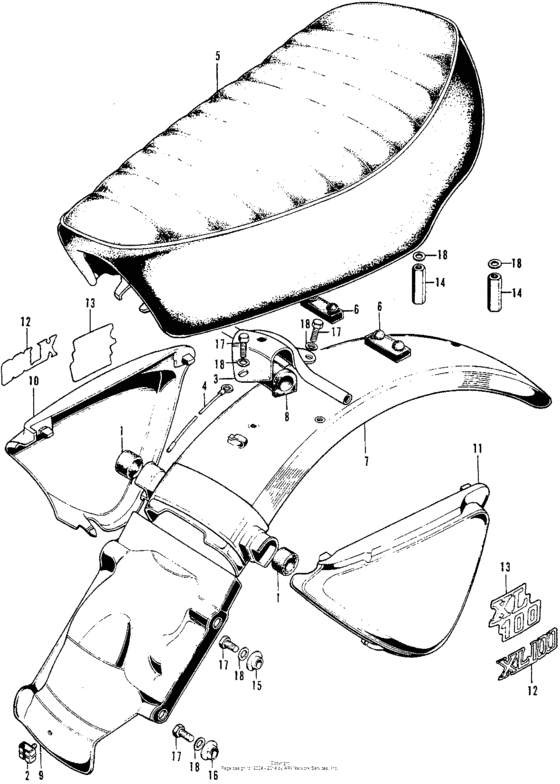

Seat + rear fender + side cover Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17611-240-000
Cushion,fuel tank
|
17611-240-000 |
— | ||
|
2
|
2
32985-300-000 Grommet, cable |
32985-300-000 |
from US $3.66 |
||
|
3
|
3
33601-364-671
Stay, rr.
|
33601-364-671 |
— | ||
|
4
|
4
33620-300-760
Wire, rr.
|
33620-300-760 |
— | ||
|
5
|
5
77200-364-670-A
Seat comp.,double
|
77200-364-670-A |
— | ||
|
6
|
6
77205-286-000 Rubber b, seat setting |
77205-286-000 |
from US $6.66 |
||
|
7
|
7
80100-364-670MA
Fender, rr. *nh44ms*
|
80100-364-670MA |
— | ||
|
8
|
8
80106-110-000
Rubber,rearfender
|
80106-110-000 |
— | ||
|
9
|
9
80120-331-010
Fender b,rear
|
80120-331-010 |
— | ||
|
10
|
10
83540-110-010CM
Cover, r. side *r4c*
|
83540-110-010CM |
— | ||
|
11
|
11
83640-110-010CM
Cover, l. side *r4c*
|
83640-110-010CM |
— | ||
|
13
|
13
87128-364-671
Emblem,side cover
|
87128-364-671 |
— | ||
|
14
|
14
90301-110-000
Nut,seat,setting
|
90301-110-000 |
— | ||
|
15
|
15
90522-028-000 Washer, chain case setting |
90522-028-000 |
from US $1.92 |
||
|
16
|
16
90554-028-000
Washer,distance
|
90554-028-000 |
— | ||
|
17
|
17
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
17
|
17
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
17
|
17
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
18
|
18
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
