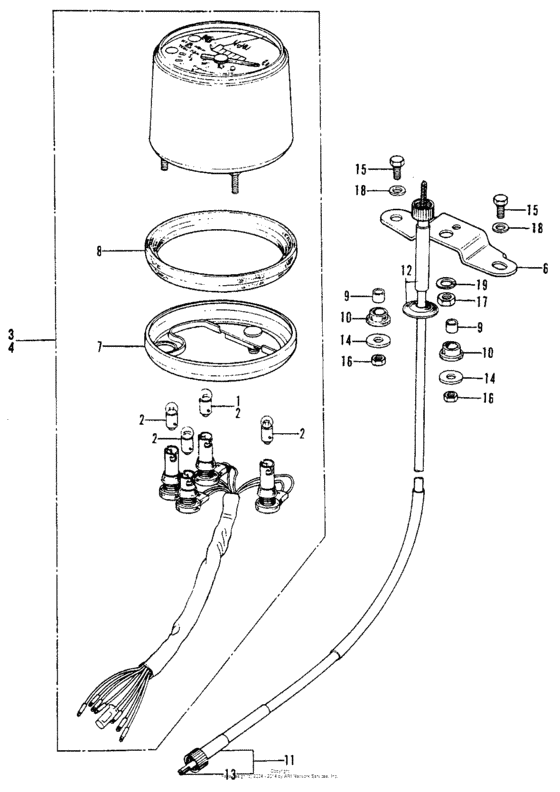

Speedometer Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
34908-230-000 Bulb,speedometer |
34908-230-000 |
from US $2.74 |
||
|
3
|
3
37200-364-771
Speedometer assy
|
37200-364-771 |
— | ||
|
6
|
6
37212-110-790
Holder, speedometer
|
37212-110-790 |
— | ||
|
7
|
7
37213-110-790 Ring,meter set |
37213-110-790 |
US $23.39 |
||
|
8
|
8
37242-307-670 Cushion meter |
37242-307-670 |
US $11.40 |
||
|
9
|
9
37243-307-670 Colr, meter setting |
37243-307-670 |
from US $3.11 |
||
|
10
|
10
37244-307-670 Rubber |
37244-307-670 |
from US $3.55 |
||
|
11
|
11
44830-364-672
Cable, speedometer
|
44830-364-672 |
— | ||
|
12
|
12
44834-391-670
Cover,cable hole
|
44834-391-670 |
— | ||
|
14
|
14
90581-831-650 Washer (18mm) |
90581-831-650 |
from US $1.55 |
||
|
15
|
15
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
15
|
15
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
15
|
15
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
16
|
16
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
17
|
17
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
18
|
18
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
19
|
19
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
