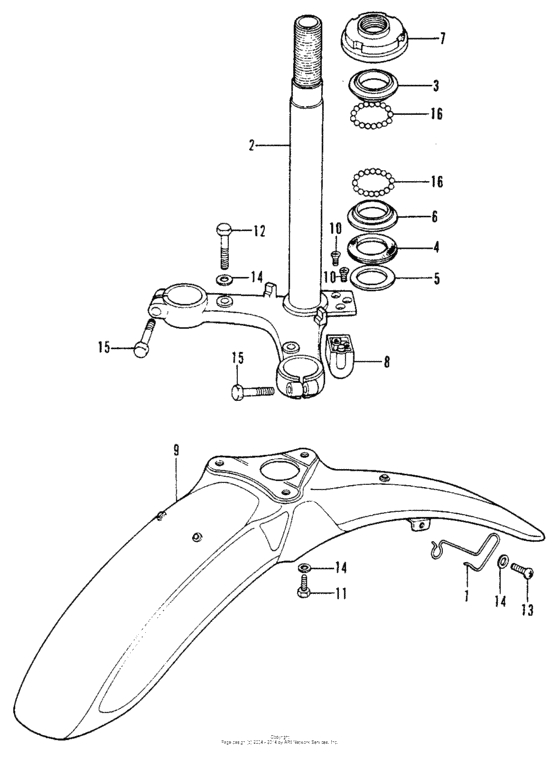

Steering stem + front fender k1 Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45465-331-770
Clip,cable
|
45465-331-770 |
— | ||
|
2
|
2
53200-074-000-B
Stem,steering
|
53200-074-000-B |
— | ||
|
3
|
3
53211-028-010 Race, steering cone |
53211-028-010 |
from US $7.55 |
||
|
4
|
4
53214-001-010 Dust seal |
53214-001-010 |
from US $2.44 |
||
| replacement | |||||
|
4
|
4
53214-GJG-C20 DUST SEAL |
53214-GJG-C20 |
from US $2.69 |
||
|
5
|
5
53215-001-000 Washer |
53215-001-000 |
from US $1.92 |
||
|
6
|
6
53212-030-010 Race, steering cone |
53212-030-010 |
from US $7.40 |
||
|
7
|
7
53220-074-000 Thread |
53220-074-000 |
from US $10.11 |
||
|
8
|
8
35010-001-010
Switch kit, comb.
|
35010-001-010 |
— | ||
|
9
|
9
61100-331-670MA
Fender,front
|
61100-331-670MA |
— | ||
|
10
|
10
90164-028-000 Screw (6x12) |
90164-028-000 |
from US $1.92 |
||
|
11
|
11
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
11
|
11
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
11
|
11
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
12
|
12
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
12
|
12
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
12
|
12
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
13
|
13
93500-060120B Screw, pan, 6x12 |
93500-060120B |
from US $0.59 |
||
|
14
|
14
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
15
|
15
95300-080-320-0 Bolt,hex.,8x32 |
95300-080-320-0 |
US $0.59 |
||
|
16
|
16
96211-06000 BallSTEEL, #6(3/16) |
96211-06000 |
from US $0.15 |
||
