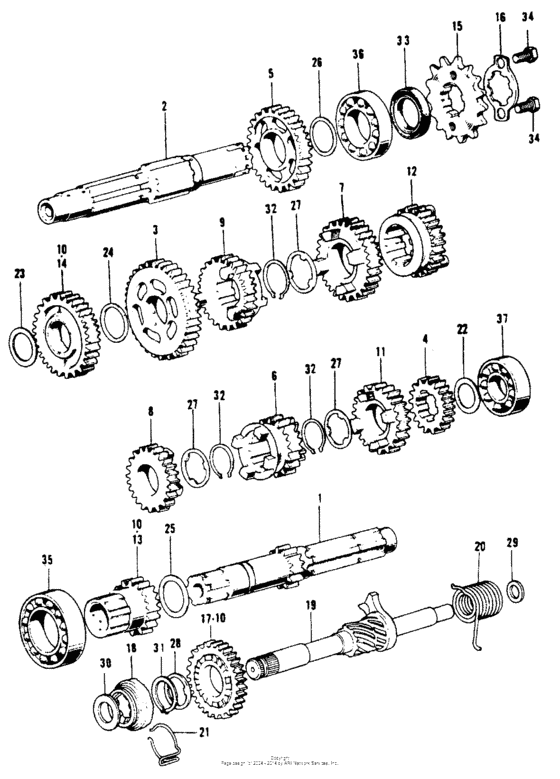

Transmission + kick starter Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-383-003 Mainshaft (13t) |
23211-383-003 |
from US $90.13 |
||
|
2
|
2
23221-107-000
Shaft,counter
|
23221-107-000 |
— | ||
| replacement | |||||
|
2
|
2
23221-107-020 Counter shaft |
23221-107-020 |
US $84.32 |
||
|
2
|
2
23221-107-020 Counter shaft |
23221-107-020 |
US $84.32 |
||
|
3
|
3
23421-331-010 Gear,counter low |
23421-331-010 |
US $101.98 |
||
|
4
|
4
23441-107-000
Gear,second
|
23441-107-000 |
— | ||
|
5
|
5
23451-331-671 Gear,ct/shaft 2nd |
23451-331-671 |
US $49.30 |
||
|
6
|
6
23461-427-000 Gear,m/shaft 3rd |
23461-427-000 |
US $79.85 |
||
|
7
|
7
23471-331-670 Gear,c3 |
23471-331-670 |
US $55.90 |
||
|
8
|
8
23501-KC1-000 Gear,m-5 |
23501-KC1-000 |
from US $46.76 |
||
|
9
|
9
23491-331-670
Gear,c4
|
23491-331-670 |
— | ||
|
11
|
11
23501-331-010 Gear,main top |
23501-331-010 |
US $60.98 |
||
|
12
|
12
23511-331-670 Gear,coun.top |
23511-331-670 |
US $65.08 |
||
|
13
|
13
23520-383-000
Gear,starter
|
23520-383-000 |
— | ||
|
14
|
14
23530-383-000
Gear,idle starter
|
23530-383-000 |
— | ||
|
15
|
15
23801-KF9-505 Sprocket,drive |
23801-KF9-505 |
from US $22.07 |
||
|
15
|
15
23801-107-760 Sprocket,drive |
23801-107-760 |
US $31.77 |
||
| replacements | |||||
|
15
|
15
23801-KF9-505 Sprocket,drive |
23801-KF9-505 |
from US $22.07 |
||
|
15
|
15
23801-KF9-900 Sprocket,drive |
23801-KF9-900 |
US $31.77 |
||
|
16
|
16
9501492100 Plate b, fixing |
9501492100 |
from US $0.81 |
||
|
17
|
17
28211-107-000
Pinion,starter
|
28211-107-000 |
— | ||
|
17
|
17
28211-383-000
Pinion,starter
|
28211-383-000 |
— | ||
|
18
|
18
28221-107-010
Ratchet,drive
|
28221-107-010 |
— | ||
|
19
|
19
28250-365-000
Spindle,kick
|
28250-365-000 |
— | ||
|
20
|
20
28261-107-000
Spring,starter
|
28261-107-000 |
— | ||
|
21
|
21
28271-107-000
Spring,friction
|
28271-107-000 |
— | ||
|
22
|
22
90451-107-000 Washer, thrust, 15mm |
90451-107-000 |
from US $2.15 |
||
|
24
|
24
90452-107-000 Washer,thrust |
90452-107-000 |
from US $2.11 |
||
|
25
|
25
90453-107-000 Washer a (20mm) |
90453-107-000 |
from US $2.22 |
||
|
26
|
26
90454-107-000 Washer, thrust, 20mm |
90454-107-000 |
from US $2.15 |
||
|
27
|
27
90455-107-000 Washer a (20mm) |
90455-107-000 |
from US $2.59 |
||
|
28
|
28
90458-107-000
Washer,thrust
|
90458-107-000 |
— | ||
|
29
|
29
90459-107-000 Washer, thrust, 12mm |
90459-107-000 |
from US $2.15 |
||
|
30
|
30
90462-107-000 Washer (16mm) |
90462-107-000 |
from US $2.80 |
||
|
31
|
31
90601-107-000 Circlip (25mm) |
90601-107-000 |
from US $3.11 |
||
|
32
|
32
90605-200-000 Set-ring (20mm) |
90605-200-000 |
from US $3.11 |
||
|
33
|
33
91201-030-033 Oil seal,20x34x7 |
91201-030-033 |
from US $3.89 |
||
|
33
|
33
91201-030-015
Oil,seal 20x34x7
|
91201-030-015 |
— | ||
|
34
|
34
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
35
|
35
96100-6006000 Bearing, radial ball, 6006 |
96100-6006000 |
from US $9.18 |
||
|
36
|
36
96100-6204000 Bearing, radial ball, 6204 |
96100-6204000 |
from US $6.66 |
||
|
37
|
37
96120-620-201-0 B/brg rad n/com |
96120-620-201-0 |
US $6.07 |
||
