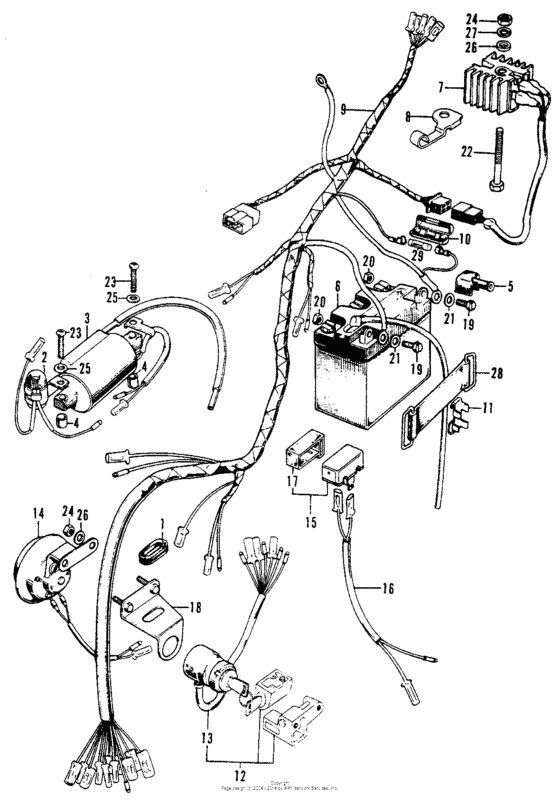

Wire harness + battery Diagram Honda XL100
- Model code
- XL100K1 A
- Sales region
- USA
- Frame
- XL1001100004 -
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17247-240-000 Grommet a, air cleaner case |
17247-240-000 |
from US $4 |
||
|
2
|
2
30250-330-003 Condenser assy |
30250-330-003 |
US $35.09 |
||
|
3
|
3
30530-330-405
Coil, ignition
|
30530-330-405 |
— | ||
|
4
|
4
30507-441-000 Collar, ignition coil setting |
30507-441-000 |
from US $3.70 |
||
|
5
|
5
31468-107-000
Cover, battery
|
31468-107-000 |
— | ||
|
6
|
6
31500-329-677AH
Battery (6n6-3b)
|
31500-329-677AH |
— | ||
|
7
|
7
31700-102-731
Rectifier,silicon
|
31700-102-731 |
— | ||
|
8
|
8
31706-364-670
Clip
|
31706-364-670 |
— | ||
|
9
|
9
32100-364-670
Wire harness
|
32100-364-670 |
— | ||
|
10
|
10
32111-230-000 Case, fuse connector |
32111-230-000 |
from US $4.88 |
||
|
11
|
11
32113-107-000 Holder,fuse |
32113-107-000 |
US $4.59 |
||
|
12
|
12
35010-364-670
Lock set
|
35010-364-670 |
— | ||
|
13
|
13
35100-324-761
Switch, combination
|
35100-324-761 |
— | ||
|
14
|
14
38100-110-671
Horn assy
|
38100-110-671 |
— | ||
|
15
|
15
38300-GF0-405 Relay, turn signal (FR-2208) |
38300-GF0-405 |
from US $53.72 |
||
|
16
|
16
38303-107-670
Sub-cord,winker
|
38303-107-670 |
— | ||
|
17
|
17
38306-092-670
Suspension,winker
|
38306-092-670 |
— | ||
|
18
|
18
50375-107-000
Bracket,switch
|
50375-107-000 |
— | ||
|
19
|
19
90122-107-000
Bolt,battery
|
90122-107-000 |
— | ||
|
20
|
20
90306-107-000
Nut,battery
|
90306-107-000 |
— | ||
|
21
|
21
90501-107-000
Washer,battery
|
90501-107-000 |
— | ||
|
22
|
22
92101-06040-0A Bolt, hex., 6x40 |
92101-06040-0A |
US $0.52 |
||
|
23
|
23
93500-050-284-J Screw,cross.5x28 |
93500-050-284-J |
US $0.86 |
||
|
24
|
24
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
25
|
25
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
26
|
26
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
27
|
27
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
28
|
28
95012-15001 Band, battery |
95012-15001 |
from US $3.63 |
||
|
29
|
29
98200-11500 Fuse (15a) |
98200-11500 |
from US $0.59 |
