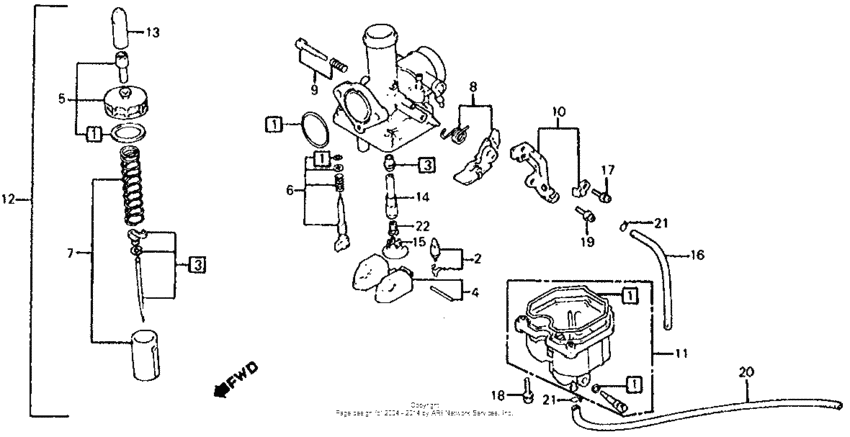

Carburetor 79-80 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-439-305 Gasket set |
16010-439-305 |
from US $25.67 |
||
|
2
|
2
16011-KCK-910 Valve set, float |
16011-KCK-910 |
from US $41.85 |
||
|
3
|
3
16012-436-004
Needle set, jet
|
16012-436-004 |
— | ||
|
4
|
4
16013-405-004 Float set |
16013-405-004 |
from US $36.58 |
||
|
5
|
5
16014-364-770
Top set
|
16014-364-770 |
— | ||
| replacement | |||||
|
5
|
5
16014-397-971
Top set
|
16014-397-971 |
— | ||
|
6
|
6
16016-410-601 Screw set a |
16016-410-601 |
from US $19.98 |
||
|
7
|
7
16022-397-651
Valve set, throttle
|
16022-397-651 |
— | ||
|
8
|
8
16025-427-004 Lever set, choke |
16025-427-004 |
US $29.51 |
||
|
9
|
9
16028-KB1-D11 Screw set b |
16028-KB1-D11 |
from US $9.47 |
||
|
10
|
10
16035-427-004 Plate set,stay |
16035-427-004 |
US $30.55 |
||
|
11
|
11
16015-KN4-A10 Chamber set, float |
16015-KN4-A10 |
from US $82.96 |
||
|
12
|
12
16100-436-014
Carburetor assy.
|
16100-436-014 |
— | ||
|
13
|
13
16118-166-004 Cap, cable sealing |
16118-166-004 |
from US $5.77 |
||
|
14
|
14
16165-436-004
Holder, needle jet
|
16165-436-004 |
— | ||
|
15
|
15
16168-382-014 Holder, jet |
16168-382-014 |
from US $7.55 |
||
|
16
|
16
16199-427-004 Pipe,air vent |
16199-427-004 |
US $6.96 |
||
|
17
|
17
93892-040-100-8 Screw-washer4X10 |
93892-040-100-8 |
from US $0.49 |
||
|
18
|
18
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
19
|
19
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
20
|
20
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
21
|
21
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
22
|
22
16110-436-305
Jet set, main (#98)
(Optional). |
16110-436-305 |
— | ||
|
22
|
22
99101-GHB1020 Jet, main (#102) |
99101-GHB1020 |
from US $5.33 |
||
