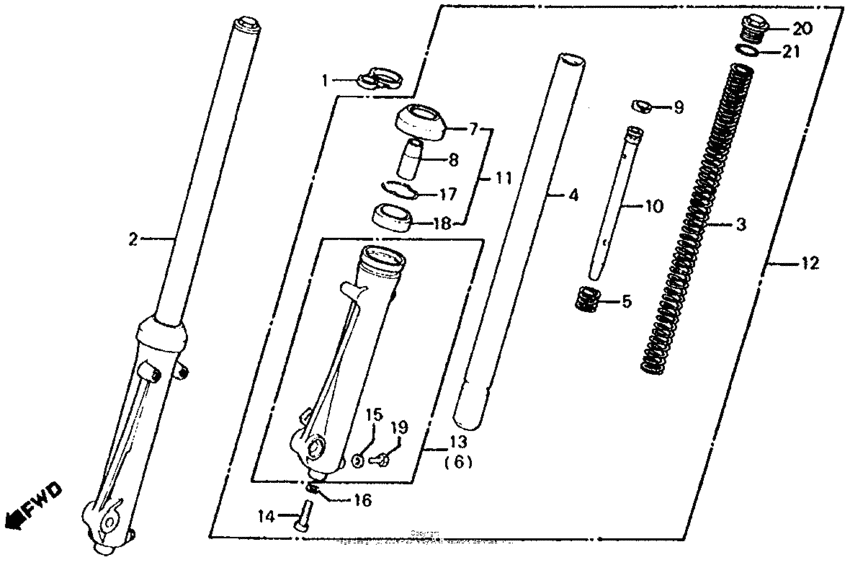

Front shock absorber 79-80 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45468-399-620 Guide,brake.cable |
45468-399-620 |
US $10.80 |
||
|
2
|
2
51400-436-013
S/abs assy., r. fr.
|
51400-436-013 |
— | ||
|
3
|
3
51401-436-003
Spring,fr.cushion
|
51401-436-003 |
— | ||
|
4
|
4
51410-365-671
Pipe,fr.fork
|
51410-365-671 |
— | ||
|
5
|
5
51412-331-770 Spring, fr |
51412-331-770 |
from US $4.29 |
||
|
6
|
6
51421-436-003
Case, r. (lower)
|
51421-436-003 |
— | ||
|
7
|
7
91254-436-003 Dust seal,fr,fork |
91254-436-003 |
from US $12.73 |
||
|
8
|
8
51432-447-731 Piece, oil locking |
51432-447-731 |
from US $14.21 |
||
|
9
|
9
51437-373-781
Ring,piston
|
51437-373-781 |
— | ||
|
10
|
10
51440-436-003
Pipe,seat
|
51440-436-003 |
— | ||
|
12
|
12
51500-436-003 S/abs assy., l. fr. |
51500-436-003 |
US $784.27 |
||
|
13
|
13
51521-436-003
Case, l. (lower)
|
51521-436-003 |
— | ||
|
14
|
14
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
15
|
15
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
16
|
16
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
17
|
17
90601-354-000 Ring, oil seal stop |
90601-354-000 |
from US $4.74 |
||
|
18
|
18
51495-331-405 Oil seal set |
51495-331-405 |
from US $17 |
||
|
18
|
18
91255-331-671 Oil seal,31x43x12 |
91255-331-671 |
US $16.49 |
||
| replacement | |||||
|
18
|
18
51495-331-405 Oil seal set |
51495-331-405 |
from US $17 |
||
|
19
|
19
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
20
|
20
9460527101 Bolt d1, fork |
9460527101 |
from US $5.45 |
||
|
21
|
21
9460830000 O-ring (23x2.4) |
9460830000 |
from US $0.89 |
||
