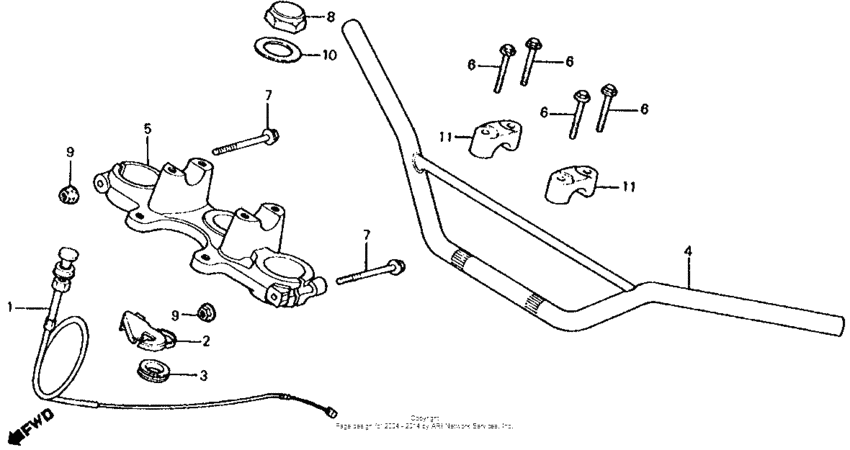

Handlebar + top bridge 79-80 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17950-436-670
Cable comp.,choke
|
17950-436-670 |
— | ||
|
2
|
2
17951-437-000
Stay,choke cable
|
17951-437-000 |
— | ||
|
3
|
3
45466-329-000 Guide, cable (inner) |
45466-329-000 |
from US $4.04 |
||
|
4
|
4
53100-437-000
Handle,steering
|
53100-437-000 |
— | ||
|
5
|
5
53230-436-000
Bridge, fork top
|
53230-436-000 |
— | ||
|
6
|
6
90111-362-000 Bolt, flange (8x36) |
90111-362-000 |
from US $2.14 |
||
|
7
|
7
90155-369-000 Bolt,flange,7x54 |
90155-369-000 |
from US $6.81 |
||
|
8
|
8
90304-159-000 Nut, steering stem |
90304-159-000 |
from US $6.22 |
||
|
9
|
9
90355-369-000 Nut, flange, 7mm |
90355-369-000 |
from US $5.33 |
||
|
10
|
10
90503-051-870 Washer |
90503-051-870 |
from US $3.18 |
||
|
11
|
11
9501422200 Holder b2, handlebar |
9501422200 |
from US $7.70 |
