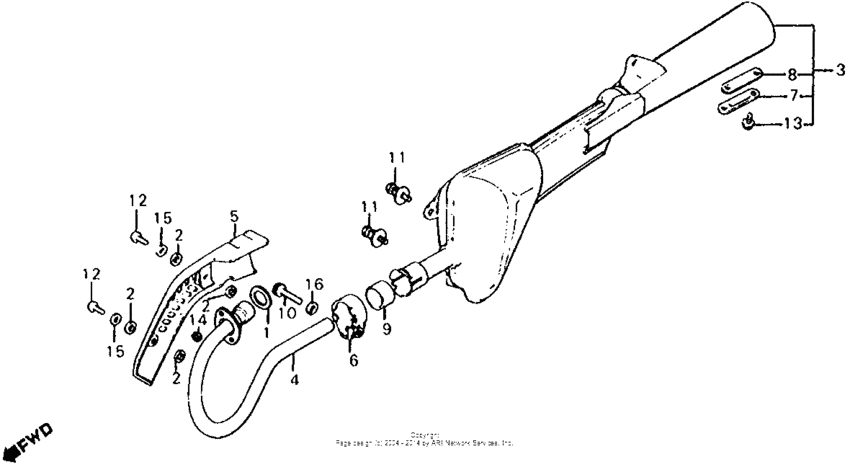

Muffler 79-80 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-028-306 Gasket, ex. pipe |
18291-028-306 |
from US $7.99 |
||
|
2
|
2
18292-MM9-740 Gasket, protector |
18292-MM9-740 |
from US $4.20 |
||
|
3
|
3
18300-436-677
Muffler assy.
|
18300-436-677 |
— | ||
|
4
|
4
18320-436-003
Pipe,ex.
|
18320-436-003 |
— | ||
|
5
|
5
18321-437-010 Protector,ex.pipe |
18321-437-010 |
US $33.05 |
||
|
6
|
6
18371-355-710 Band,muffler |
18371-355-710 |
US $12.28 |
||
|
7
|
7
18373-446-010
Lid,muffler
|
18373-446-010 |
— | ||
|
8
|
8
18374-KR8-900
Gasket, muffler
|
18374-KR8-900 |
— | ||
|
9
|
9
18391-KJ3-700 Gasket, muffler |
18391-KJ3-700 |
from US $23.66 |
||
|
10
|
10
90116-391-670
Bolt, socket
|
90116-391-670 |
— | ||
|
11
|
11
93413-080-160-8 Bolt-washer8X16 |
93413-080-160-8 |
from US $0.74 |
||
|
12
|
12
93500-060-100-G Screw,pan,6x10 |
93500-060-100-G |
from US $0.44 |
||
|
13
|
13
93891-060-120-7 Screw-washer6X12 |
93891-060-120-7 |
from US $0.52 |
||
|
14
|
14
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
15
|
15
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
16
|
16
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
