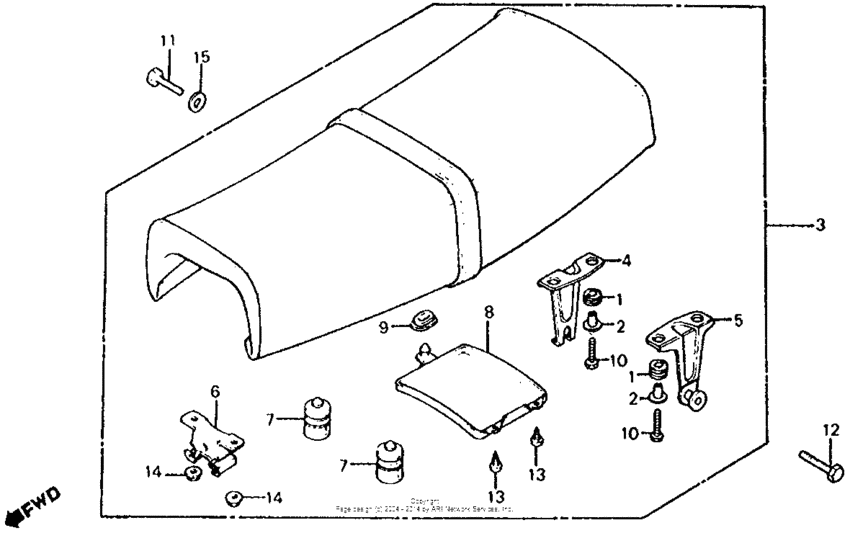

Seat 79-80 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
3
|
3
77200-436-770
Seat
|
77200-436-770 |
— | ||
|
4
|
4
77201-436-000
Stay, r. rr. seat
|
77201-436-000 |
— | ||
|
5
|
5
77202-436-000
Stay,l.rr.seat
|
77202-436-000 |
— | ||
|
6
|
6
77203-437-000 Rubber,a.seat.set |
77203-437-000 |
from US $9.92 |
||
|
7
|
7
77204-437-000 Rubber,b.seat set |
77204-437-000 |
from US $5.62 |
||
|
8
|
8
77250-340-000 Lid,seat under |
77250-340-000 |
from US $15.98 |
||
|
9
|
9
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
10
|
10
92101-06022-0A BoltHEX., 6X22 |
92101-06022-0A |
from US $0.55 |
||
|
11
|
11
92101-08020-0A BoltHEX., 8X20 |
92101-08020-0A |
from US $0.52 |
||
|
12
|
12
92101-08028-0A Bolt, hex., 8x28 |
92101-08028-0A |
from US $0.59 |
||
|
13
|
13
93901-25080 ScrewTAPPING, 5X8 |
93901-25080 |
from US $0.37 |
||
|
14
|
14
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
15
|
15
94103-08700 WasherPLAIN, 8MM |
94103-08700 |
from US $0.37 |
