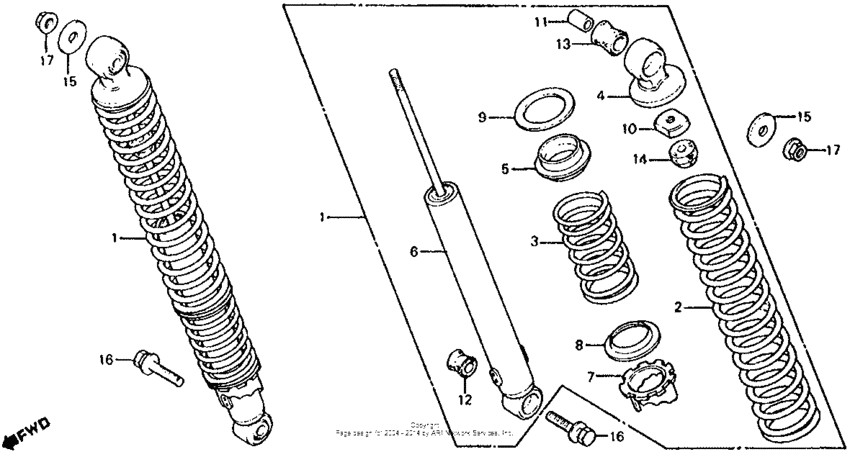

Shock absorber 79-80 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-436-013
Shock absorber, rr.
|
52400-436-013 |
— | ||
|
2
|
2
52401-436-003
Spring, rr. shock
|
52401-436-003 |
— | ||
|
3
|
3
52402-436-003
Spring b, rr. shock
|
52402-436-003 |
— | ||
|
4
|
4
52403-153-003 Joint,upper |
52403-153-003 |
US $16.59 |
||
|
5
|
5
52404-436-003
Joint, rr.
|
52404-436-003 |
— | ||
|
6
|
6
52410-436-013
Damper, rr.
|
52410-436-013 |
— | ||
|
7
|
7
52422-413-003 Adjuster,spring |
52422-413-003 |
US $22.26 |
||
|
8
|
8
52458-436-003
Seat, spring (lower)
|
52458-436-003 |
— | ||
|
9
|
9
52459-074-003
Seat,rr cushion
|
52459-074-003 |
— | ||
|
10
|
10
52482-153-003 Nut,lock,9mm |
52482-153-003 |
US $4.74 |
||
|
11
|
11
52486-056-000 Collar, rr. |
52486-056-000 |
from US $2.15 |
||
|
12
|
12
52489-361-000 Bush, damper |
52489-361-000 |
US $7.25 |
||
|
13
|
13
52489-399-601 Bush, rubber (upper) |
52489-399-601 |
from US $3.85 |
||
|
14
|
14
52517-153-003 Rubber,stopper |
52517-153-003 |
US $4.74 |
||
|
15
|
15
90521-292-000 Washer (10.3mm) |
90521-292-000 |
from US $3.63 |
||
|
16
|
16
93401-100-400-0 Bolt-washer (10x40) |
93401-100-400-0 |
from US $0.81 |
||
|
17
|
17
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
