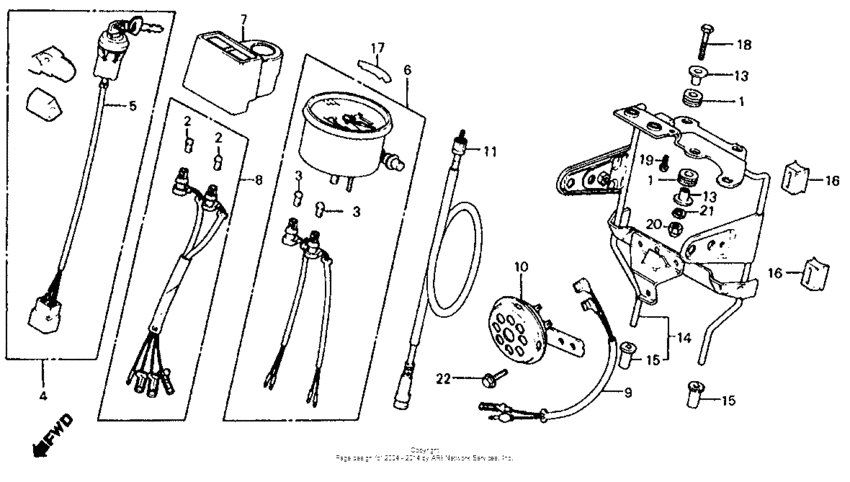

Speedometer + horn 79-80 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
34902-202-000 Bulb, dash (6v 3w) |
34902-202-000 |
from US $2.29 |
||
|
3
|
3
34908-230-000 Bulb,speedometer |
34908-230-000 |
from US $2.74 |
||
|
4
|
4
35010-437-030 Key set |
35010-437-030 |
US $148.24 |
||
|
5
|
5
35100-KF9-631 Switch, combination |
35100-KF9-631 |
US $43.79 |
||
|
6
|
6
37200-436-670
Speedometer assy
|
37200-436-670 |
— | ||
|
7
|
7
37601-152-008
Cover comp,pilot
|
37601-152-008 |
— | ||
|
8
|
8
37619-149-008
Cord comp.,pilot
|
37619-149-008 |
— | ||
|
9
|
9
38105-399-600
Sub cord,horn
|
38105-399-600 |
— | ||
|
10
|
10
38110-GS3-013
Horn assy. (high)
|
38110-GS3-013 |
— | ||
|
11
|
11
44830-KB5-720 Cable, speedometer |
44830-KB5-720 |
from US $15.78 |
||
|
11
|
11
44830-361-010 Cable,speedometer |
44830-361-010 |
US $25.31 |
||
| replacement | |||||
|
11
|
11
44830-KB5-720 Cable, speedometer |
44830-KB5-720 |
from US $15.78 |
||
|
11
|
11
44830-419-670 Cable,speedometer |
44830-419-670 |
US $25.31 |
||
| replacement | |||||
|
11
|
11
44830-KB5-720 Cable, speedometer |
44830-KB5-720 |
from US $15.78 |
||
|
13
|
13
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
14
|
14
61311-436-670ZA
Bracket *nh1*
|
61311-436-670ZA |
— | ||
|
15
|
15
61312-358-300 Grommet,lt.case |
61312-358-300 |
from US $3.48 |
||
|
16
|
16
61316-361-000 Rubber,brkt. mt. |
61316-361-000 |
US $6.22 |
||
|
17
|
17
87523-413-710
Label
|
87523-413-710 |
— | ||
|
18
|
18
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
19
|
19
93901-24380 ScrewTAPPING, 4X12 |
93901-24380 |
from US $0.37 |
||
|
20
|
20
94021-060-700-S NutCAP, 6MM |
94021-060-700-S |
from US $0.59 |
||
|
21
|
21
94111-06700 WasherSPRING, 6MM |
94111-06700 |
from US $0.37 |
||
|
22
|
22
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
