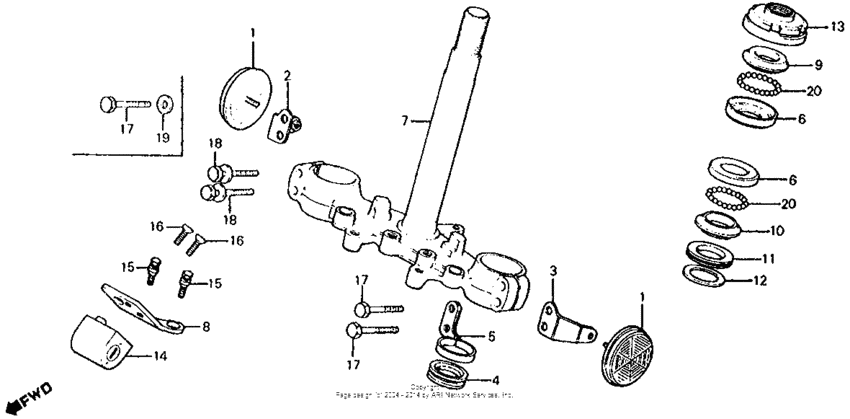

Steering stem 79-80 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-102-870 Reflector, fr. |
33741-102-870 |
from US $28.70 |
||
|
2
|
2
33750-436-670
Stay, r. fr. reflex
|
33750-436-670 |
— | ||
|
3
|
3
33751-436-670
Stay, l. fr. reflex
|
33751-436-670 |
— | ||
|
4
|
4
45466-329-000 Guide, cable (inner) |
45466-329-000 |
from US $4.04 |
||
|
5
|
5
45468-329-000 Guide b,brk.cable |
45468-329-000 |
US $8.32 |
||
|
6
|
6
50301-041-010 Race |
50301-041-010 |
from US $7.70 |
||
|
7
|
7
53200-437-000ZC New Genuine Part |
53200-437-000ZC |
US $285.82 |
||
|
8
|
8
53203-437-000 Holder,handlelock |
53203-437-000 |
from US $12.33 |
||
|
9
|
9
53211-028-010 Race, steering cone |
53211-028-010 |
from US $7.55 |
||
|
10
|
10
53212-030-010 Race, steering cone |
53212-030-010 |
from US $7.40 |
||
|
11
|
11
53214-001-010 Dust seal |
53214-001-010 |
from US $2.44 |
||
| replacement | |||||
|
11
|
11
53214-GJG-C20 DUST SEAL |
53214-GJG-C20 |
from US $2.69 |
||
|
12
|
12
53215-001-000 Washer |
53215-001-000 |
from US $1.92 |
||
|
13
|
13
53220-074-000 Thread |
53220-074-000 |
from US $10.11 |
||
|
14
|
14
53600-086-007 Lock, handlebar |
53600-086-007 |
from US $26.38 |
||
|
15
|
15
90107-195-860
Bolt b (6mm)
|
90107-195-860 |
— | ||
|
16
|
16
90164-028-000 Screw (6x12) |
90164-028-000 |
from US $1.92 |
||
|
17
|
17
92101-08032-0B Bolt, hex. (8x32) |
92101-08032-0B |
from US $0.90 |
||
|
19
|
19
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
20
|
20
96211-06000 BallSTEEL, #6(3/16) |
96211-06000 |
from US $0.15 |
||
