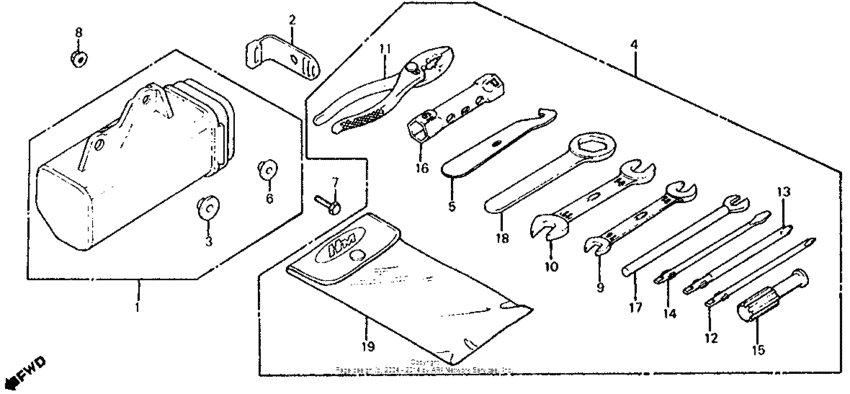

Tools 79-80 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83501-428-300
Box,tool
|
83501-428-300 |
— | ||
| replacement | |||||
|
1
|
1
83501-KF9-900 Tool box |
83501-KF9-900 |
US $31.69 |
||
|
2
|
2
83510-428-000 Band, tool box |
83510-428-000 |
from US $5.33 |
||
|
3
|
3
83515-428-000 Collar, tool box |
83515-428-000 |
US $3.18 |
||
| replacement | |||||
|
3
|
3
83515-KF9-900 Collar, tool box |
83515-KF9-900 |
US $3.18 |
||
|
4
|
4
89010-436-000
Tool set
|
89010-436-000 |
— | ||
|
5
|
5
89215-404-670 Wrench, pin |
89215-404-670 |
from US $10.46 |
||
|
6
|
6
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
7
|
7
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
8
|
8
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
9
|
9
99001-10120 Spanner |
99001-10120 |
from US $3.55 |
||
|
10
|
10
99001-14170 Spanner14X17 |
99001-14170 |
from US $4.59 |
||
|
11
|
11
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
11
|
11
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
12
|
12
99003-10000 Driver1PLUS SCREW(NO.2) |
99003-10000 |
from US $1.41 |
||
|
13
|
13
9900320000 Driver 2, plus screw (no.3) |
9900320000 |
from US $1.55 |
||
|
14
|
14
99003-30000 Driver 3MINUS SCREW (NO.2) |
99003-30000 |
from US $1.41 |
||
|
15
|
15
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
|
16
|
16
9900416170 Wrench, box (p16x17) |
9900416170 |
from US $4.29 |
||
|
17
|
17
9900501000 Bar a, handle |
9900501000 |
from US $1.48 |
||
|
18
|
18
9900619000 Wrench, eye, 19mm |
9900619000 |
from US $5.18 |
||
|
19
|
19
99008-01600 BagTOOL, 160MM |
99008-01600 |
from US $2.29 |
||
